This article explains how to activate your 3rd party SMS gateway so the WhiteLabel Tracking platform can send SMS messages via your SMS Gateway.

SMS messages can be used for the following
  1. Alerts - notify users  (e.g. John has exceeded the road speed limit of 50 kph by 30 kph)
  2. Tracking Device Configuration - The platform can auto send SMS messages so your device starts reporting to our servers
Notes
Some SMS providers or countries add unsubscribe text (e.g. “Reply STOP to unsubscribe”) to messages. This prevents trackers from recognizing commands. Ensure your provider is not doing this if you wish to use SMS for device configuration.

We have integrated many SMS gateway providers and are always adding more, here are some of the popular providers:

Provider NameCountries supported
Advanta SMS
advantasms.com		Kenya, Rwanda, Uganda & Tanzania
Africas Talking
africastalking.com		African countries
AirTouch
airtouch.co.ke		Kenya
Bulk SMS
bulksms.com		Worldwide
(South Africa based)
Caburn Telecom
caburntelecom.com		Worldwide
(UK based)
Clickatell
clickatell.com		Worldwide
E Solution SMS
esolutions.co.zw		Zimbambwe
Esendex
esendex.com		Worldwide
Habary Bulk SMS
sms2.habary.co.ke		Kenya
Helomobile
helomobile.co.ke		Kenya
Info Bip
infobip.com		Worldwide
(Croatia based)
InterTelcom
intertelecom.gr		Greece
Mteja
mteja.io		Worldwide
(Kenya based)
MTN Zambia
mtn.zm		Zambia
Safaricom
safaricom.co.ke		East & Central Africa
SMS Africa
smsafrica.co.ke		Kenya
SMS Africa SA
smssouthafrica.co.za		South Africa
SMS Leopard
smsleopard.com		Supported countries
(Kenya based)
SMS Portal
smsportal.com
Use REST API key, Client ID = UserName, Secret = Password, Base URL = https://rest.mymobileapi.com/BulkMessages		South Africa
SMS Web Hook
Suitable for custom integrations
Instead of an SMS, the platform hits your endpoint in this format
https://your-api-endpoint.com
?msisdn={MSISDN} &message={MESSAGE} &sender={SENDERID} &token={TOKEN} &username={USERNAME}		Worldwide
Telynx
telnyx.com		Worldwide
(USA based)
Twillio
twilio.com		Worldwide
(USA based)

This isn't the full list, if you dont see your in the platform (Admin > Reseller Settings), we will integrate your SMS provider quickly and easily.

To set up your reseller account with an SMS Gateway, firstly contact your SMS Gateway provider for the account details
Once you have the user, password etc you can input them in the Reseller SMS settings in the admin panel.

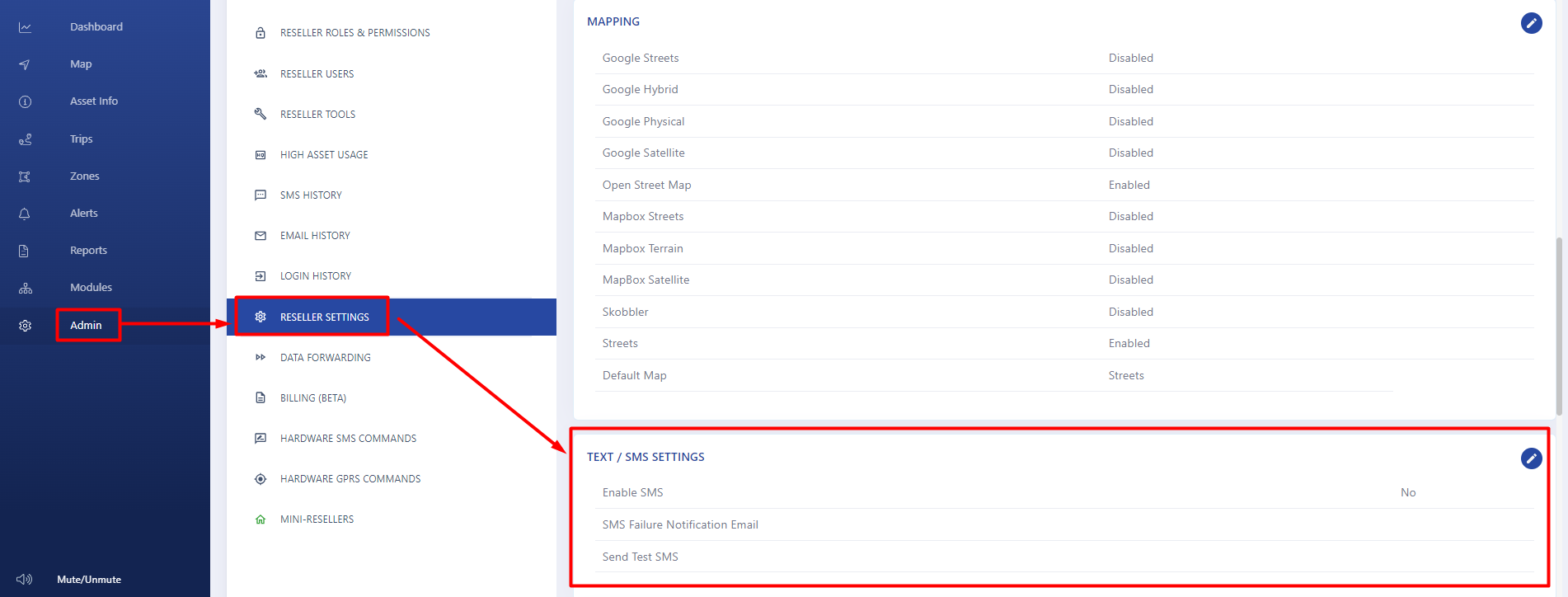

Goto Admin Select RESELLER SETTINGS





On the right hand side, find the SMS section, and click the EDIT icon
Set SMS ENABLED to YES
Choose your SMS provider and enter their connection details (in this example Token Id & Secret)
You can also test SMS messages are working by sending yourself a test message

 When done, click on the UPDATE icon to SAVE





NOTE: You need to enable a quota on each client to manage your SMS costs, please review this Configuring SMS Quota article
