This article gives an overview of how to configure different types of inputs output and sensors

You may want to create a fuel or temperature sensor mapping, add an engine cut off output, or map an input like door open close



First you must add the TYPE and give it a name, after you have created these types, you will then assign the relevant input,output or sensor to this type (this will be covered in a different article)
To first create the master TYPE, go to admin

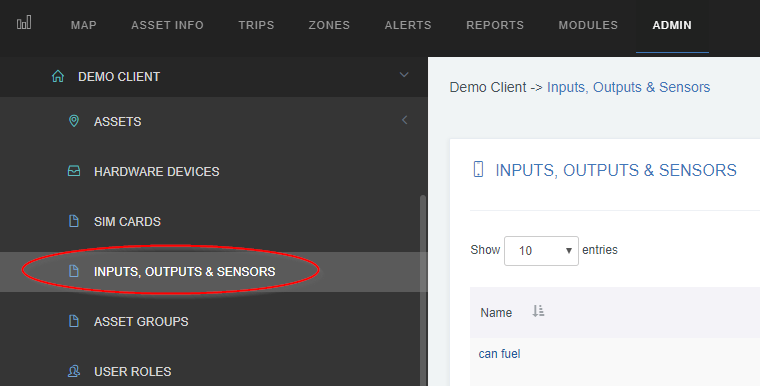

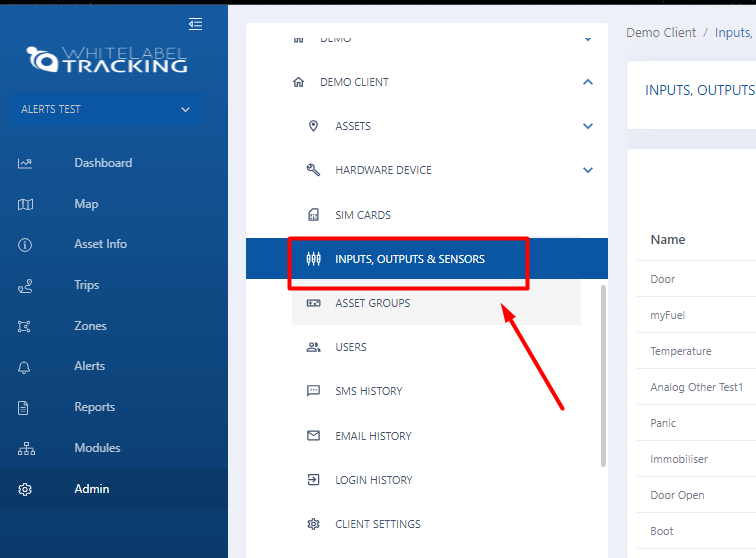

Expand the client in question and select Inputs, Outputs & Sensors





Then create a new TYPE





You have the following types/sub types to choose from

  1. Digital Input
  2. Digital Output
  3. Analog/Sensor Input
    1. Analog Other
    2. Fuel
    3. Temperature

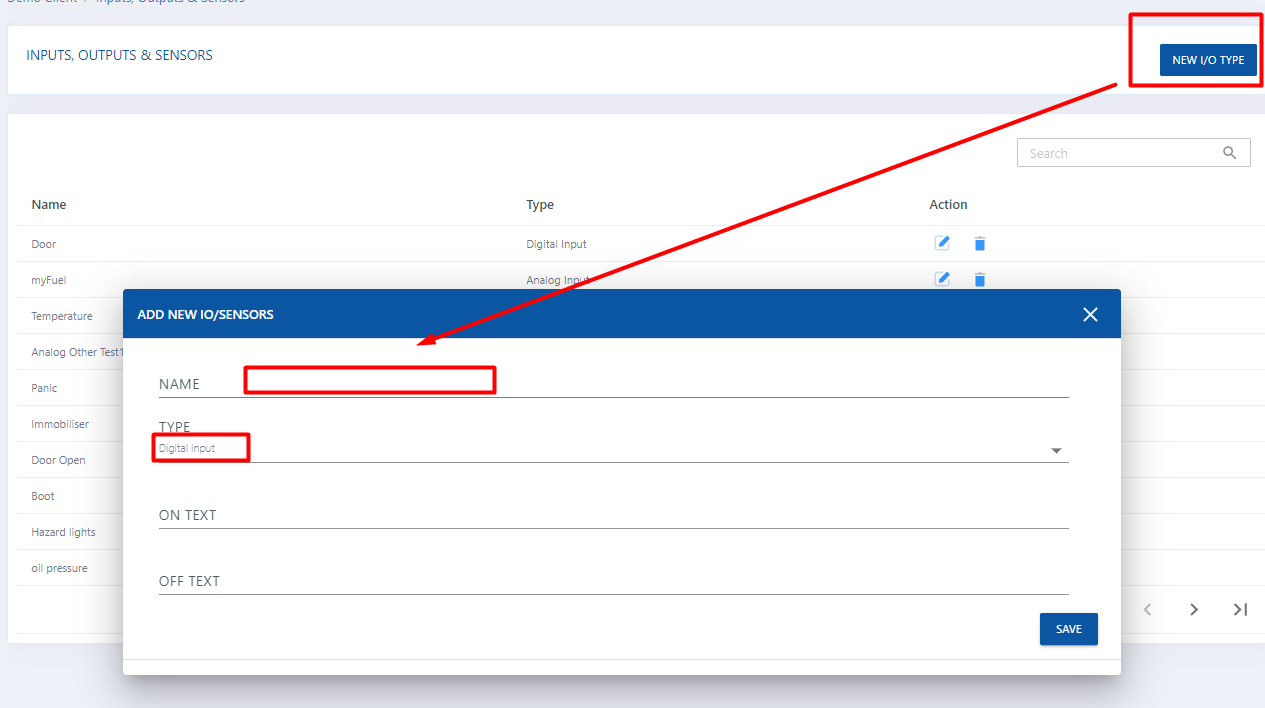

 Here is an example of Digital Input



An example of Digital Output

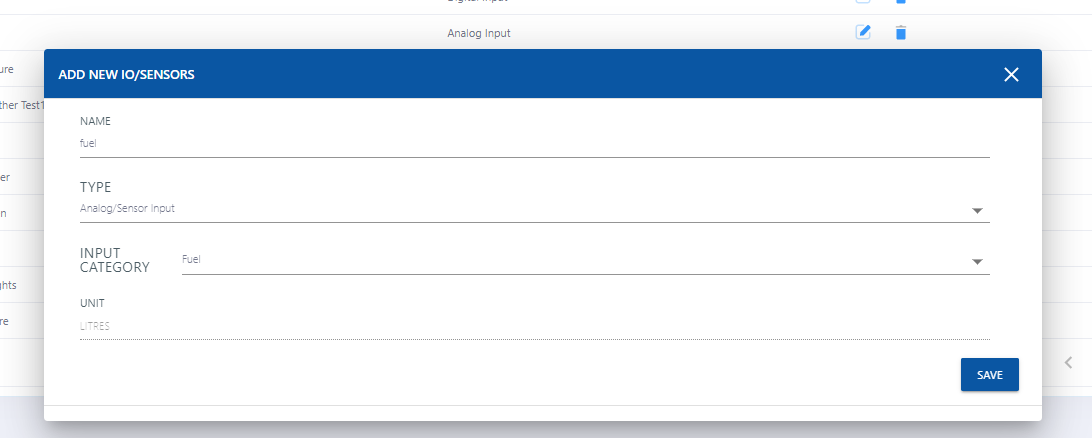

The Analog/Sensor Input section has an extra drop down to choose from, here is an example of fuel

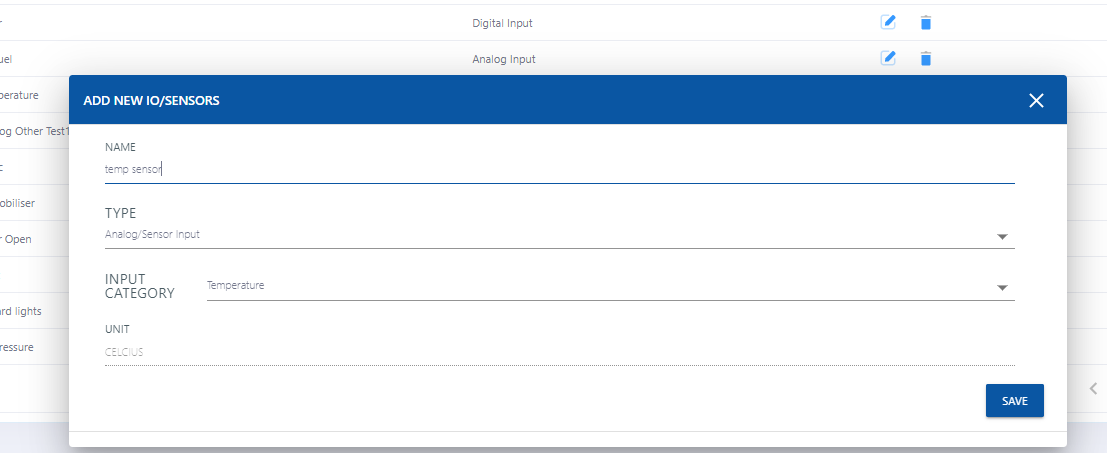

here is an example of temperature

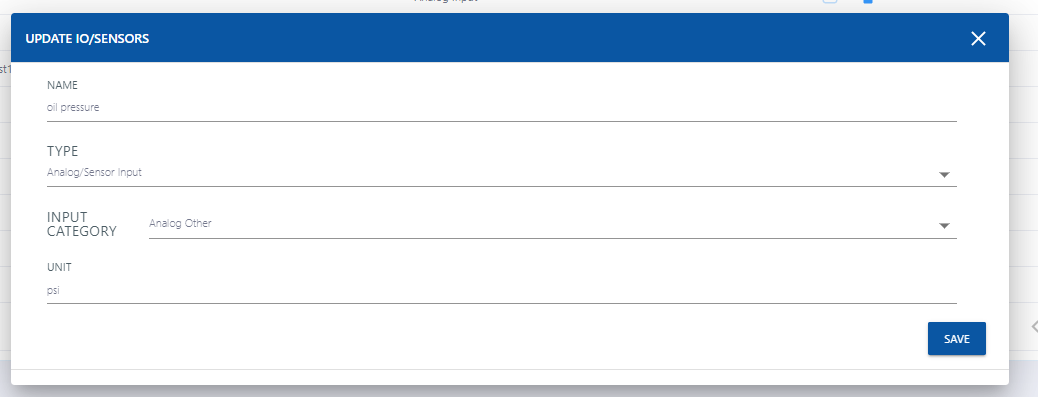

here is an example of another type of analog sensor that isn't fuel or temperature related, this could axle load, tyre pressure etc

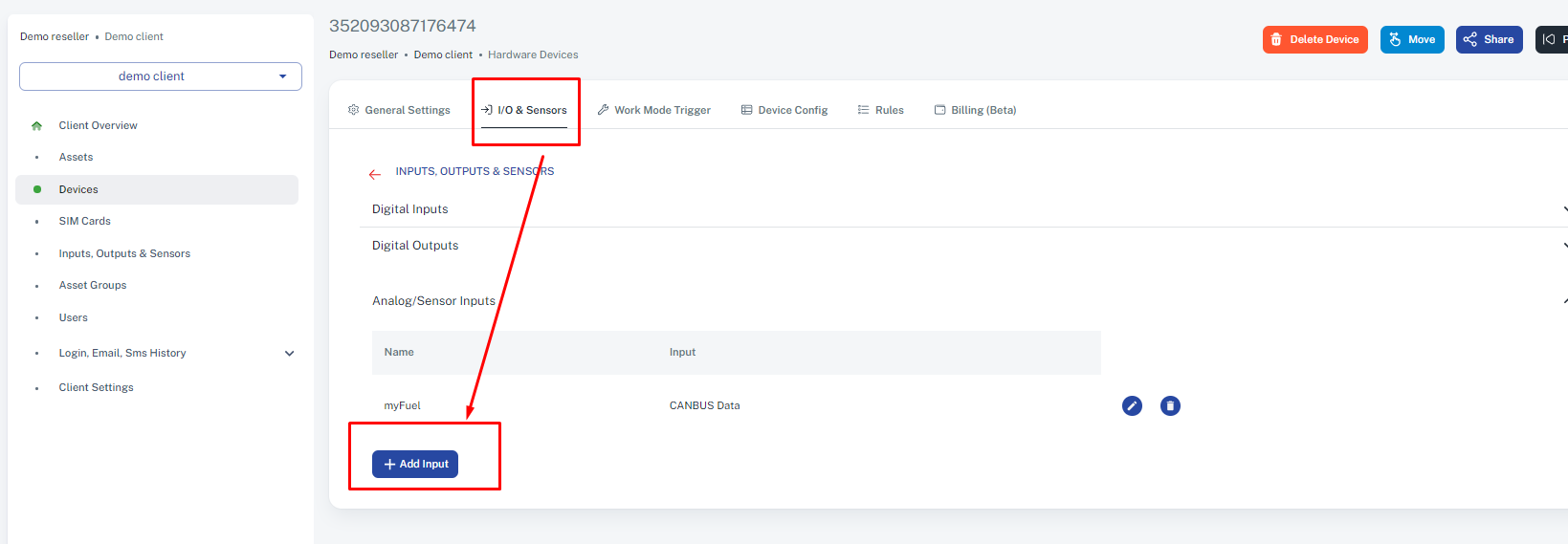

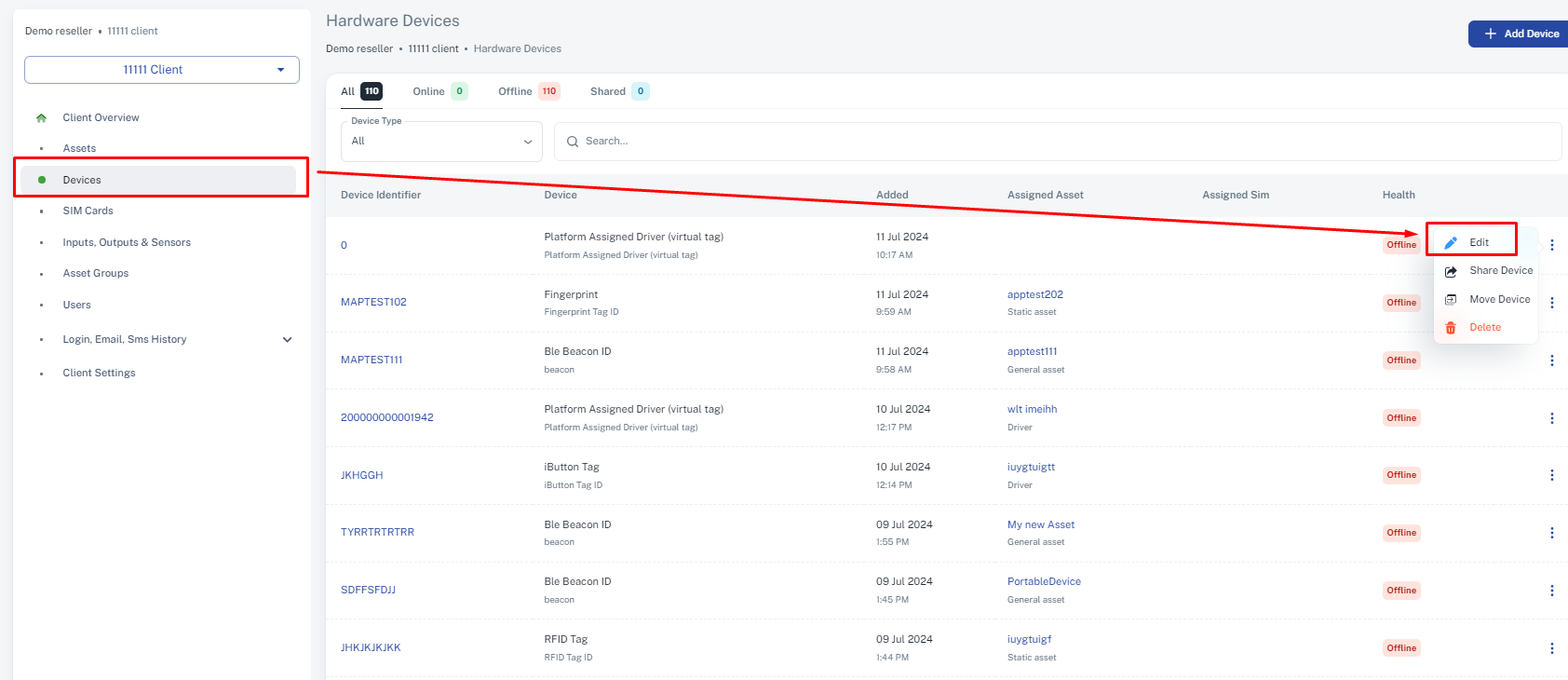

Now you have created your types, you will need to edit the DEVICES in admin and map the I/O or sensor to this TYPE

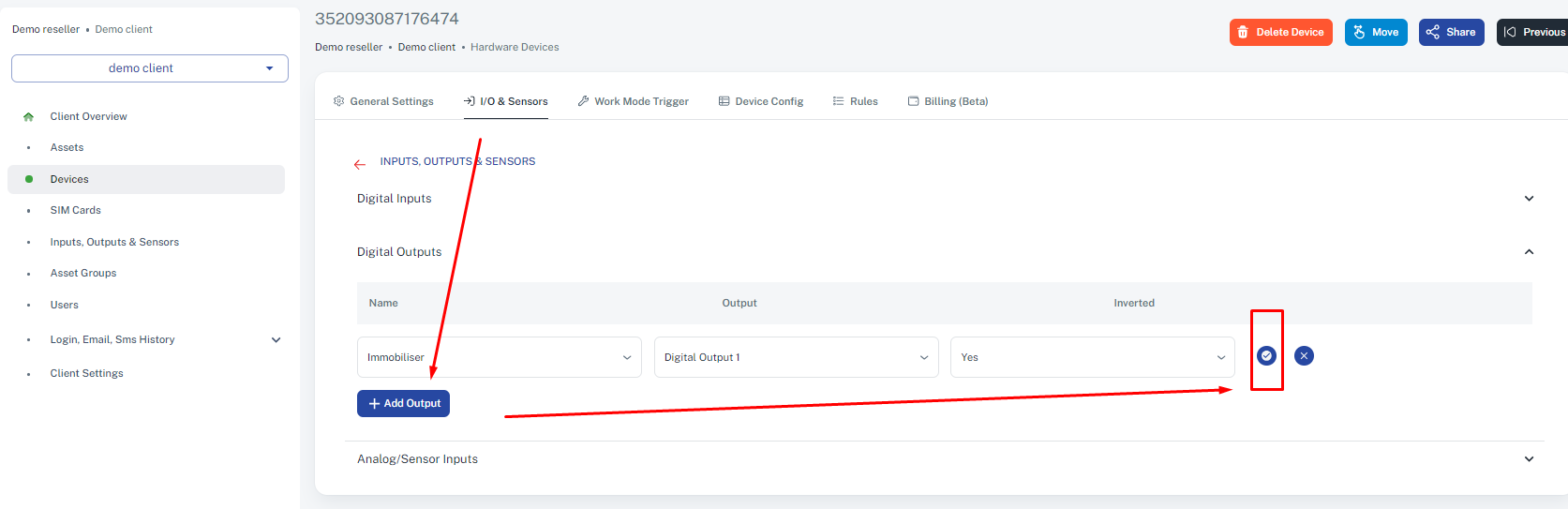

Here is an example of a digital output/fuel cut

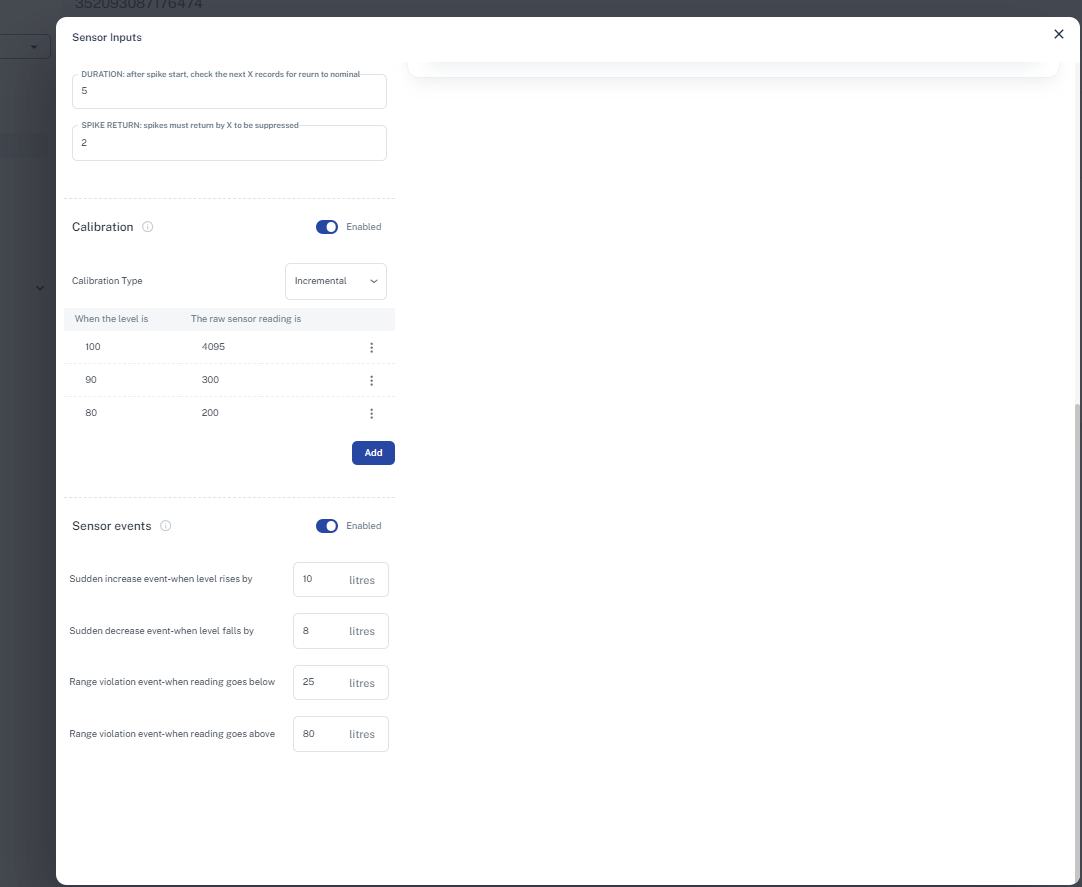

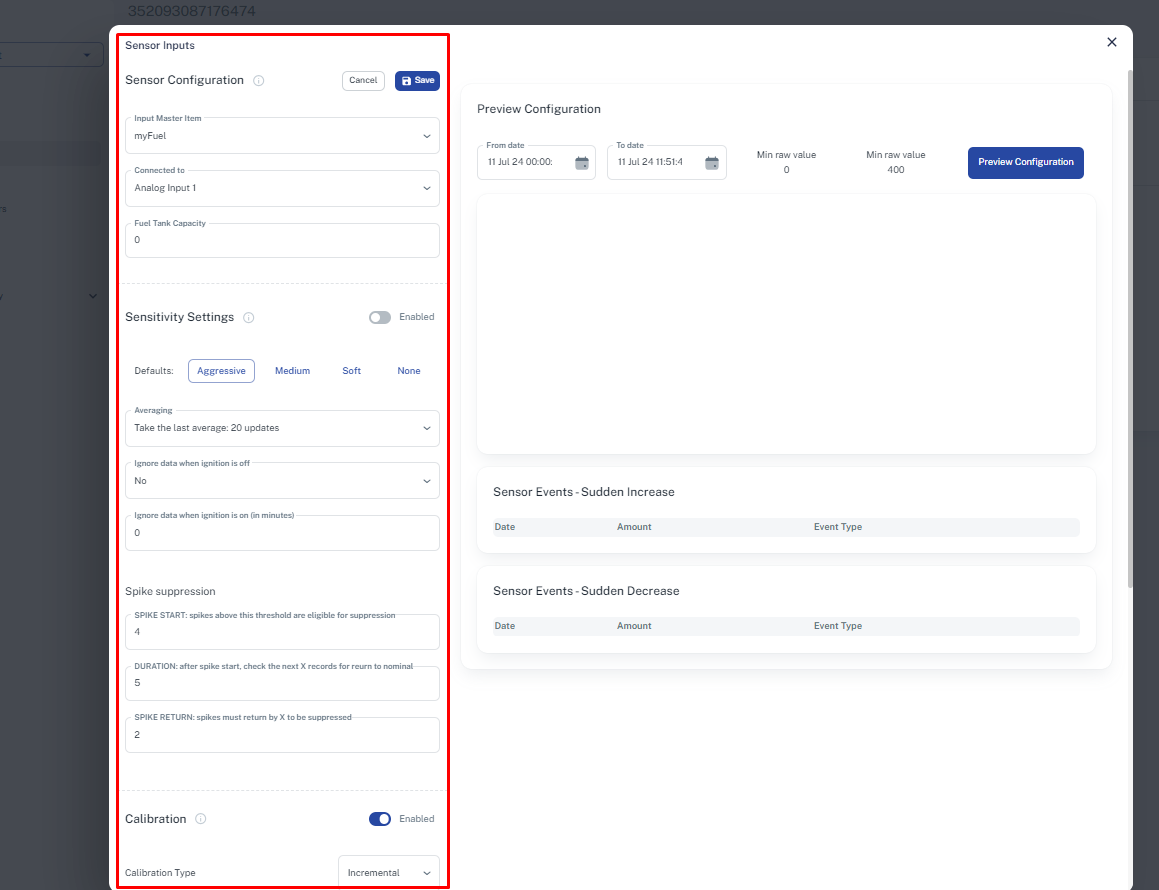

 Here is an example of an analog fuel/sensor configuration and calibration
