Howen Configuration Procedure Via Web
To access this page via the web.
Ensure the camera is connected to the same wiff as your pc.
Connect to the camera hotspot and read the camera IP..
Use the IP on your browser.

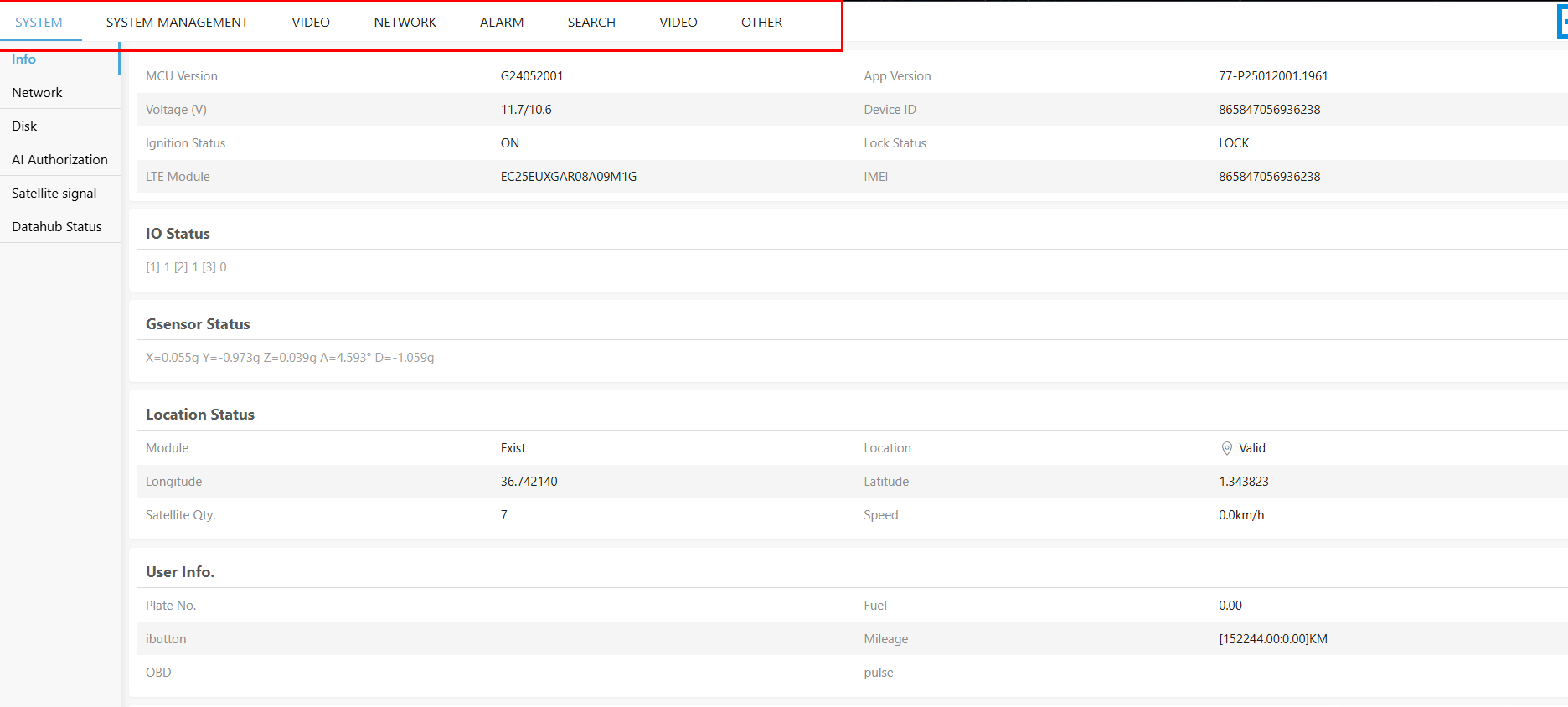

You will land on the page below ..
The first option is to configure the server and port for both camera and GPS traffic

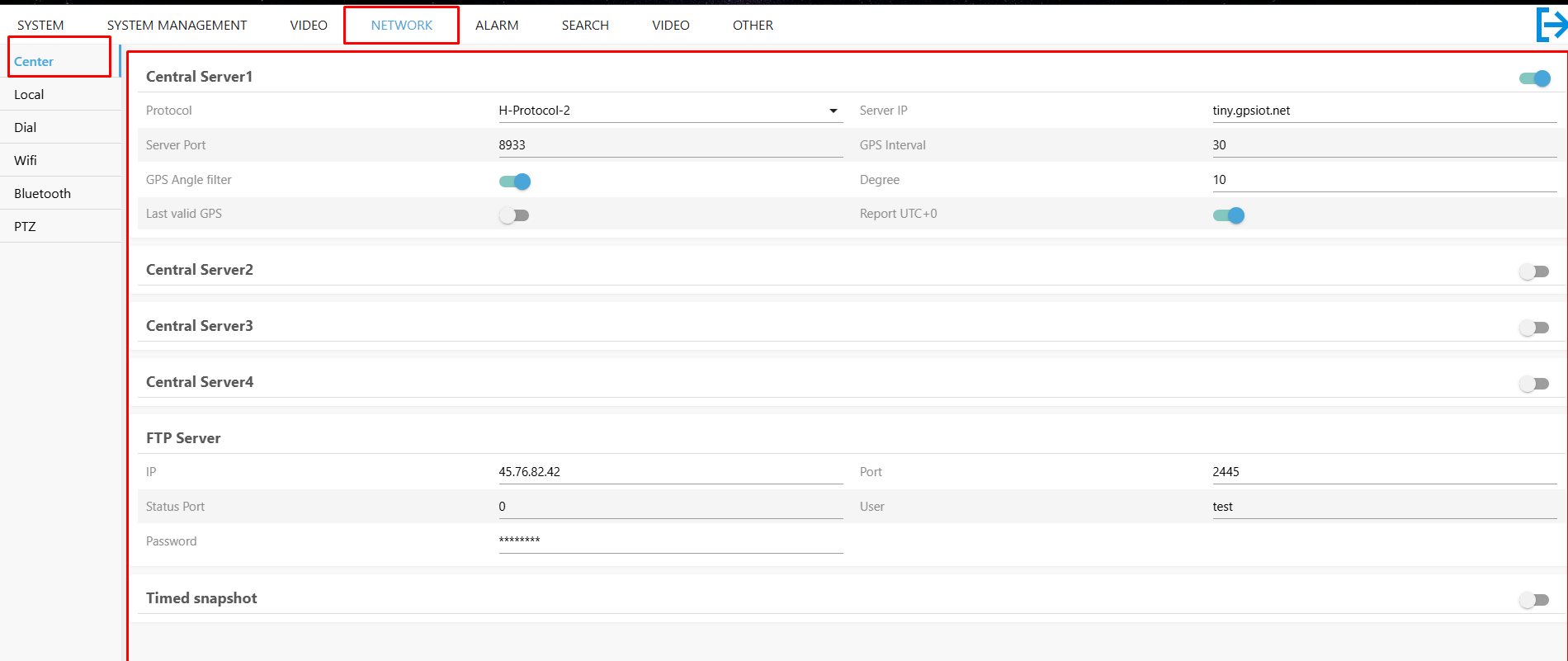

1. Navigate to Network>> centre

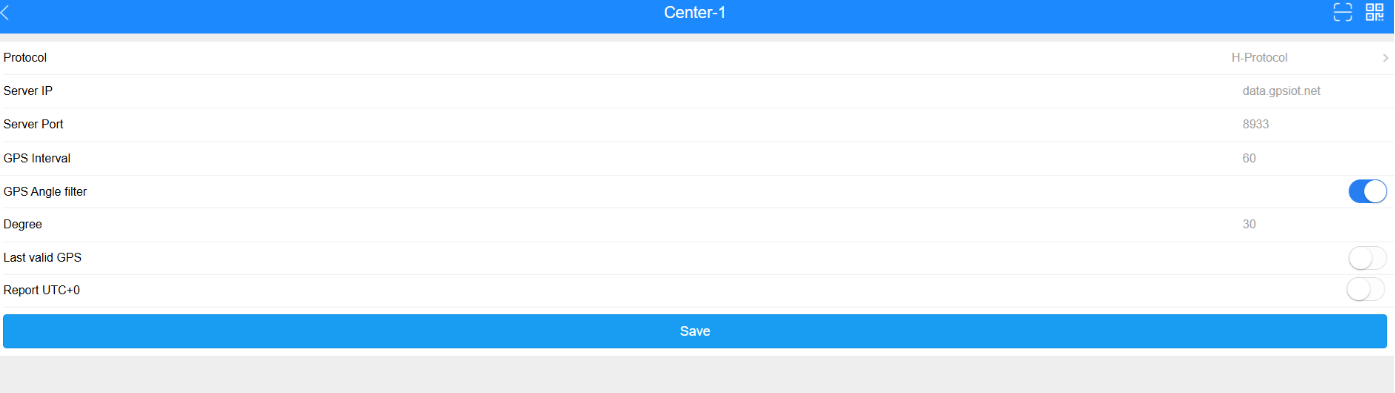

2. update the server settings on center-1

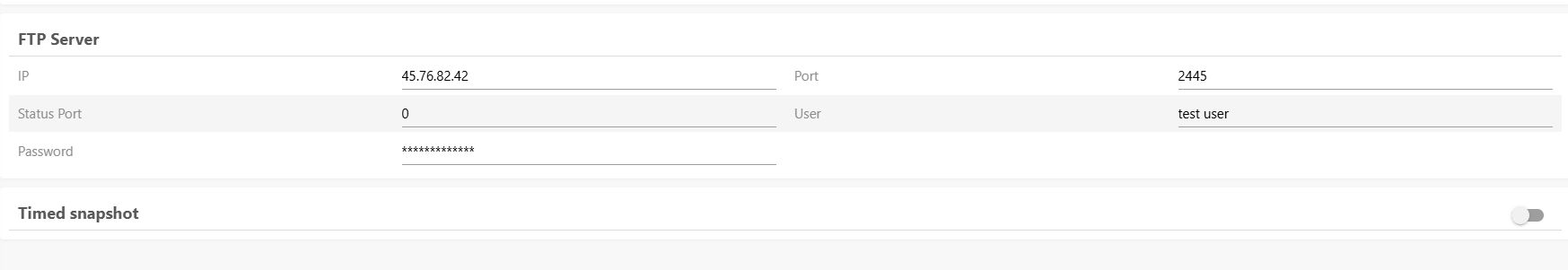

3. Update the ftp settings
4. Update Apn settings ( APN settings can be obtained from your SIM provider)

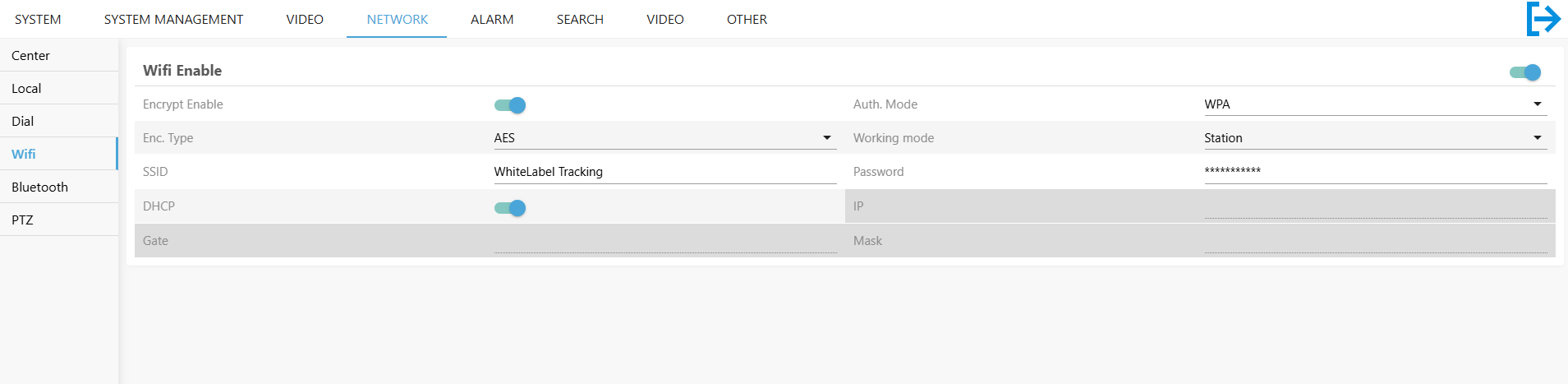

5. Update wifi settings if you want your devices to use your wiff connection when at the yard etc

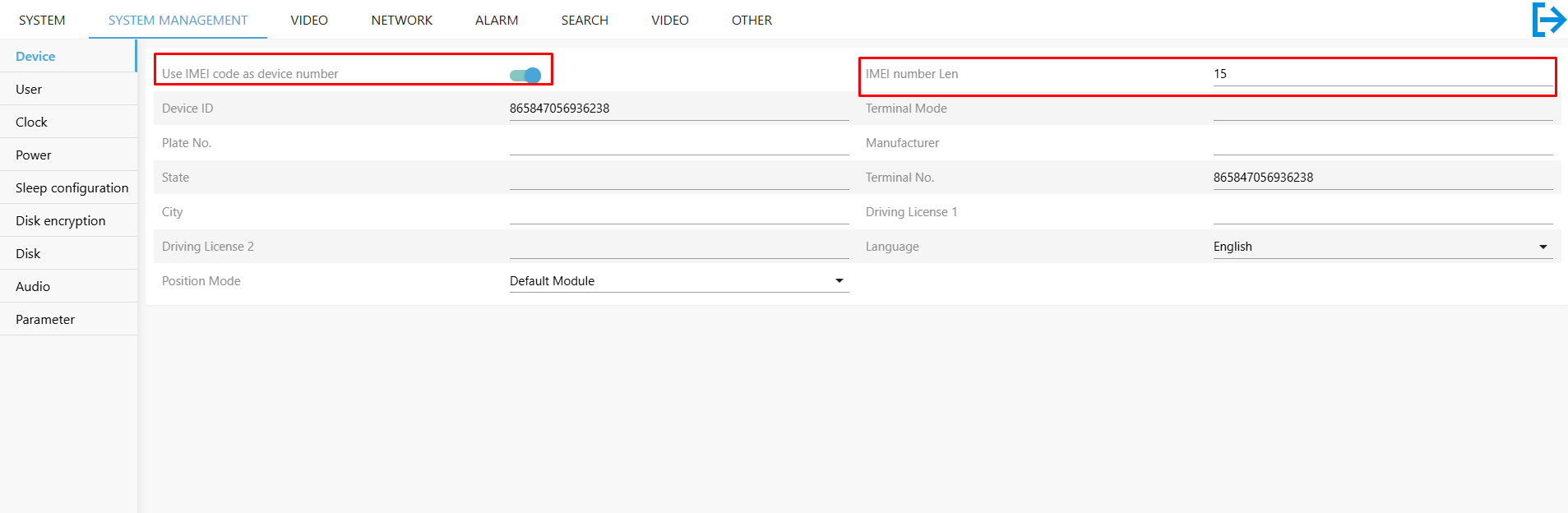

6. Set the device to use IMEI as the device ID. Click on System Management >> Device
7. Set your timezone. Click on System Management >> Device
Remember, when adding the device on the platform, you will be required to apply an offset

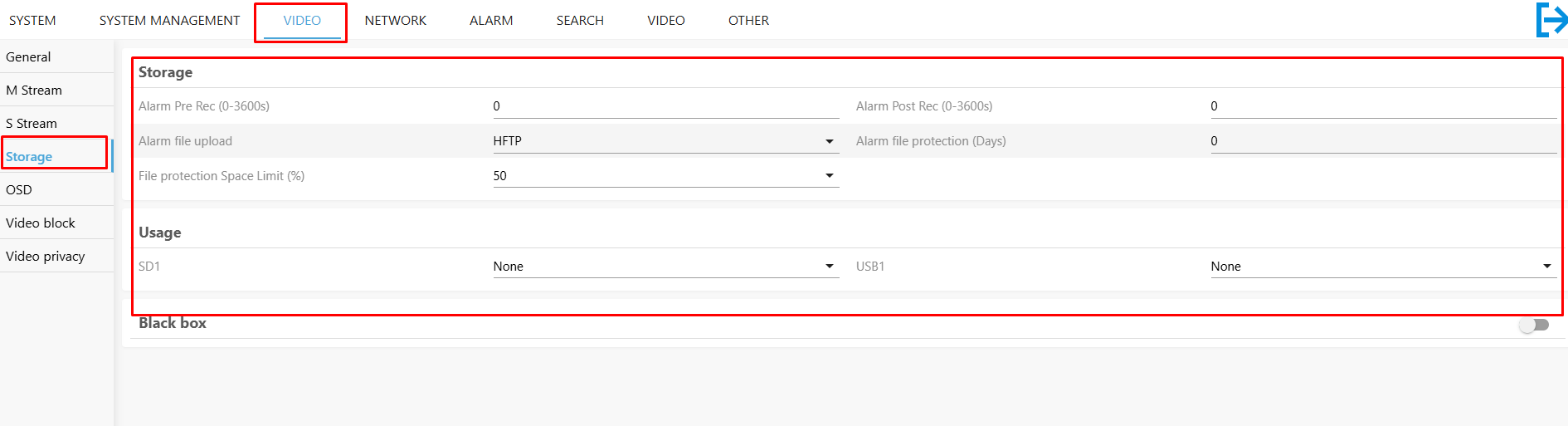

8. Set ftp server settings. Click Video. Update the storage settings

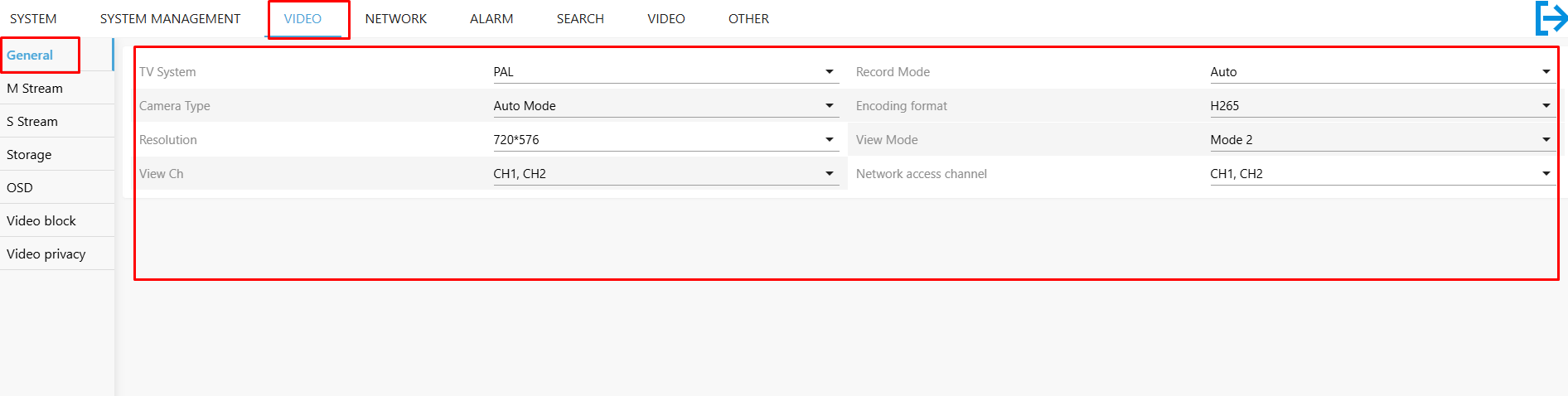

9. Set the general video settings

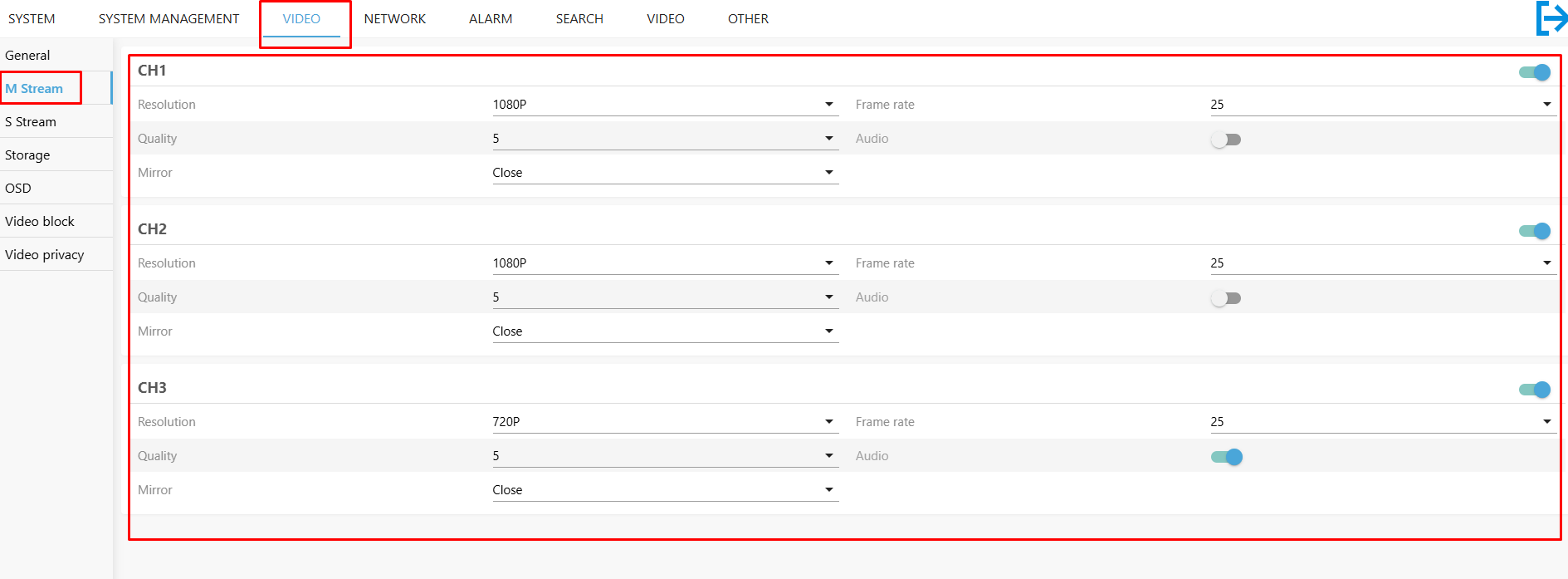

10. Update the Mstream settings. Click Video>>> M Stream

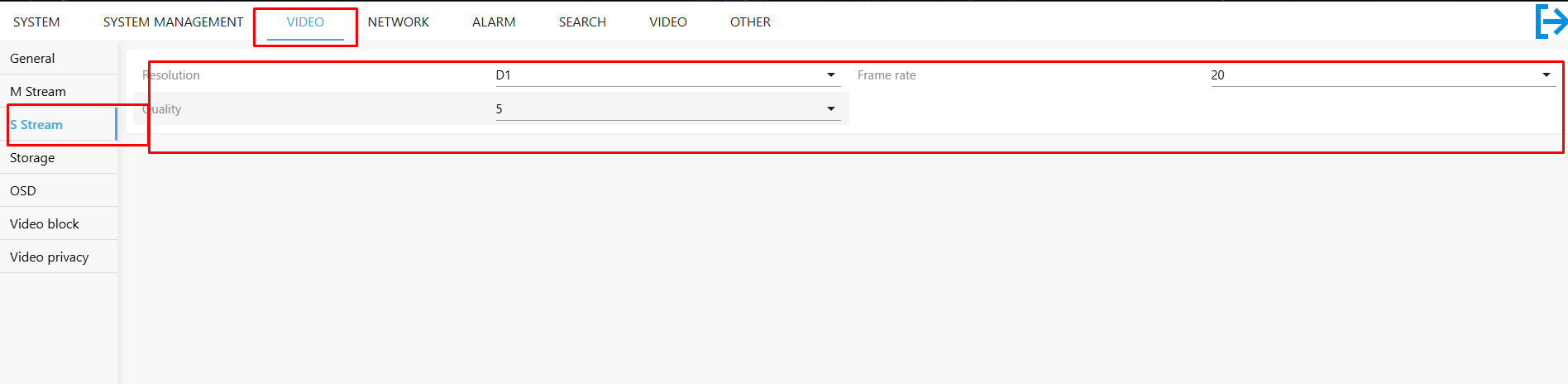

11. Update the S stream settings. Click Video>>> S Stream

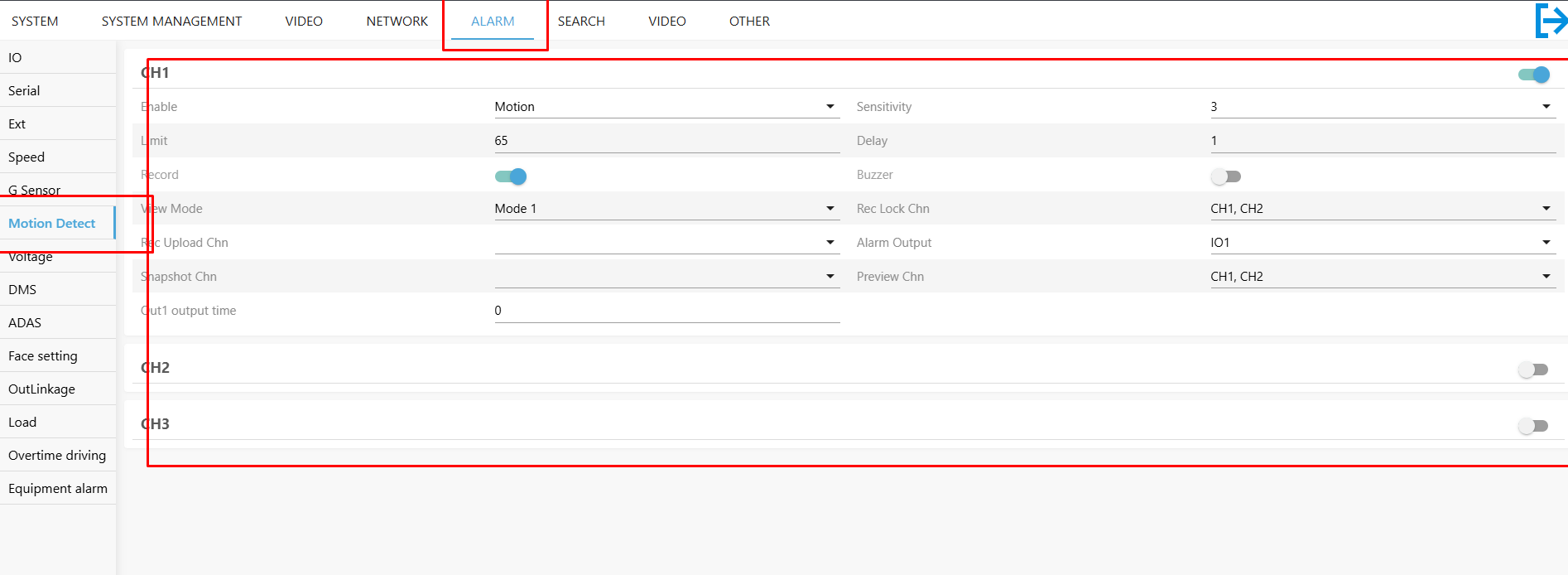

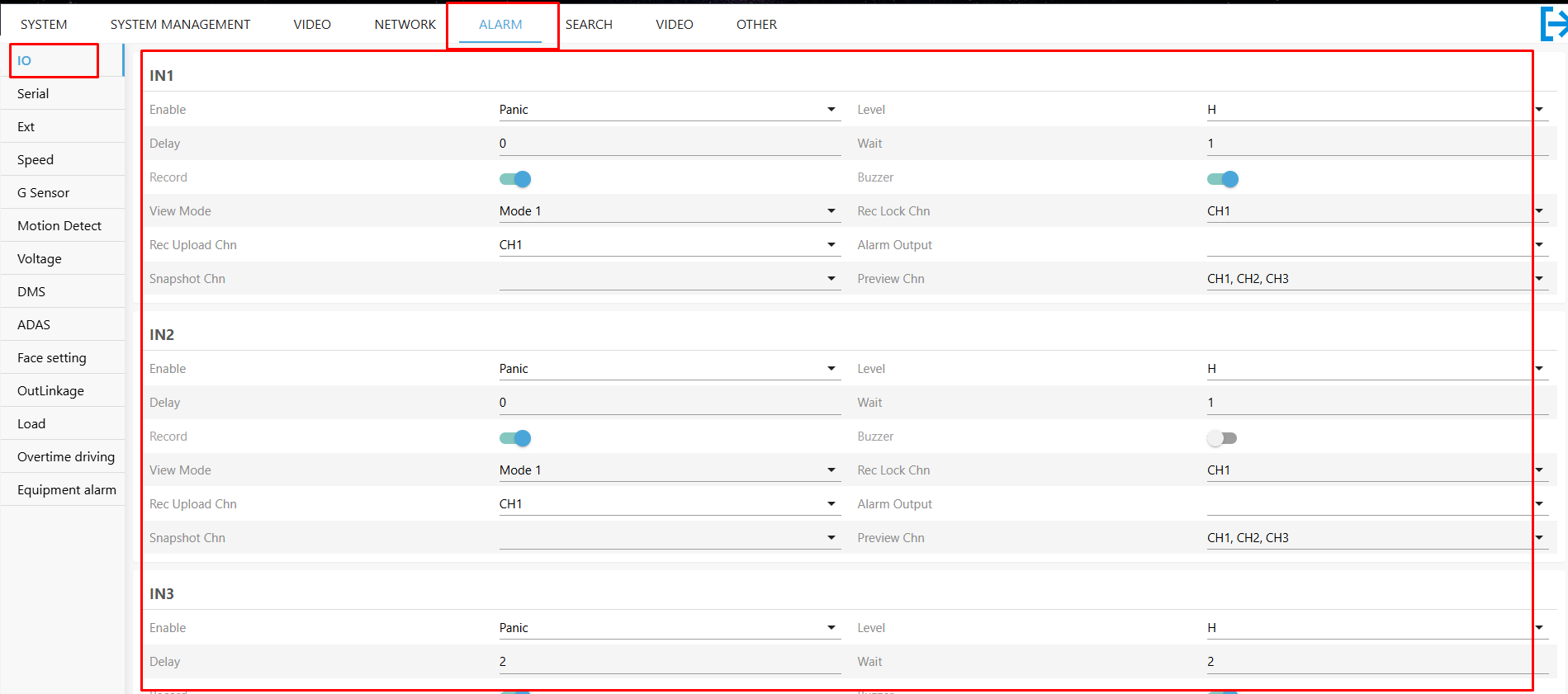

12. Update the alarm info to enable us to get event-based video telematics.

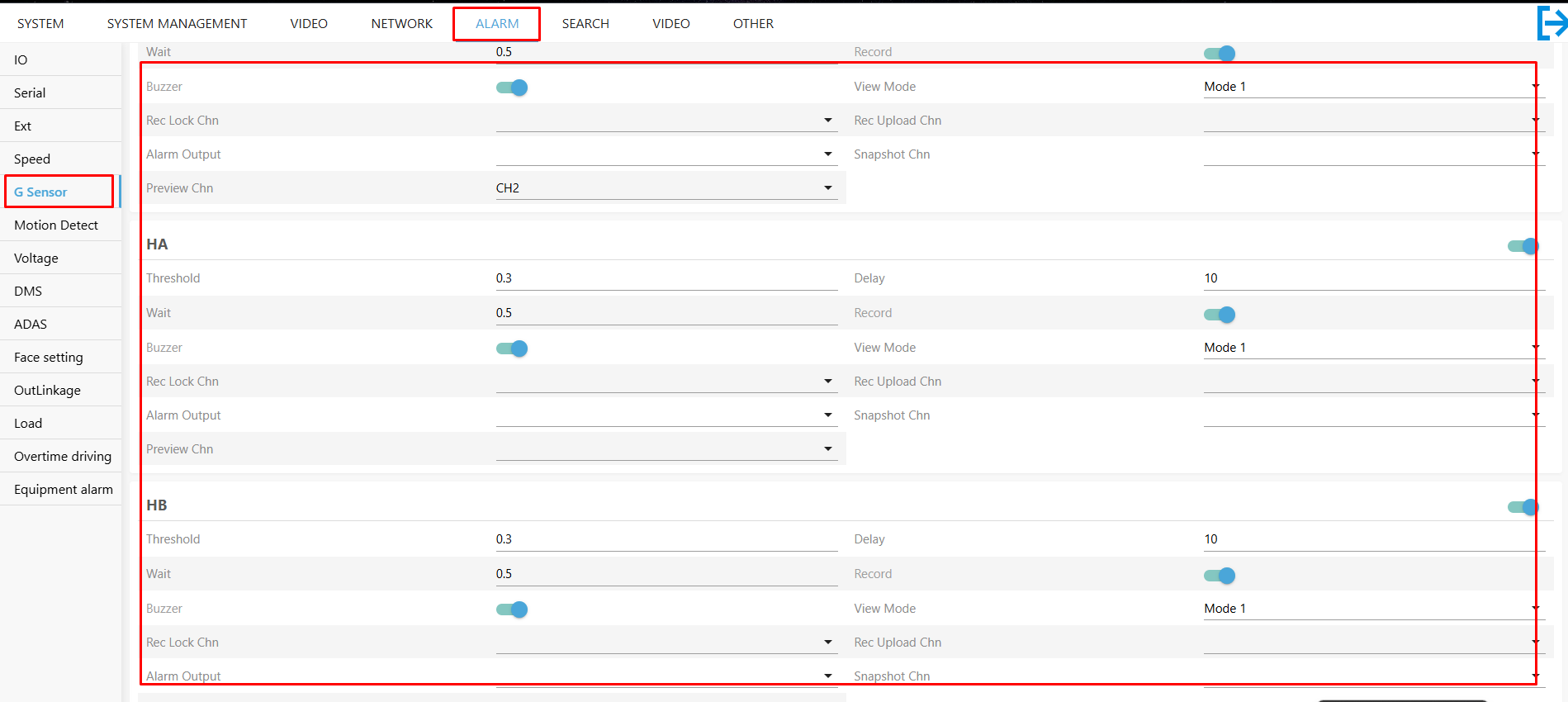

13. Update the alarm settings- g - sensor settings to your preference

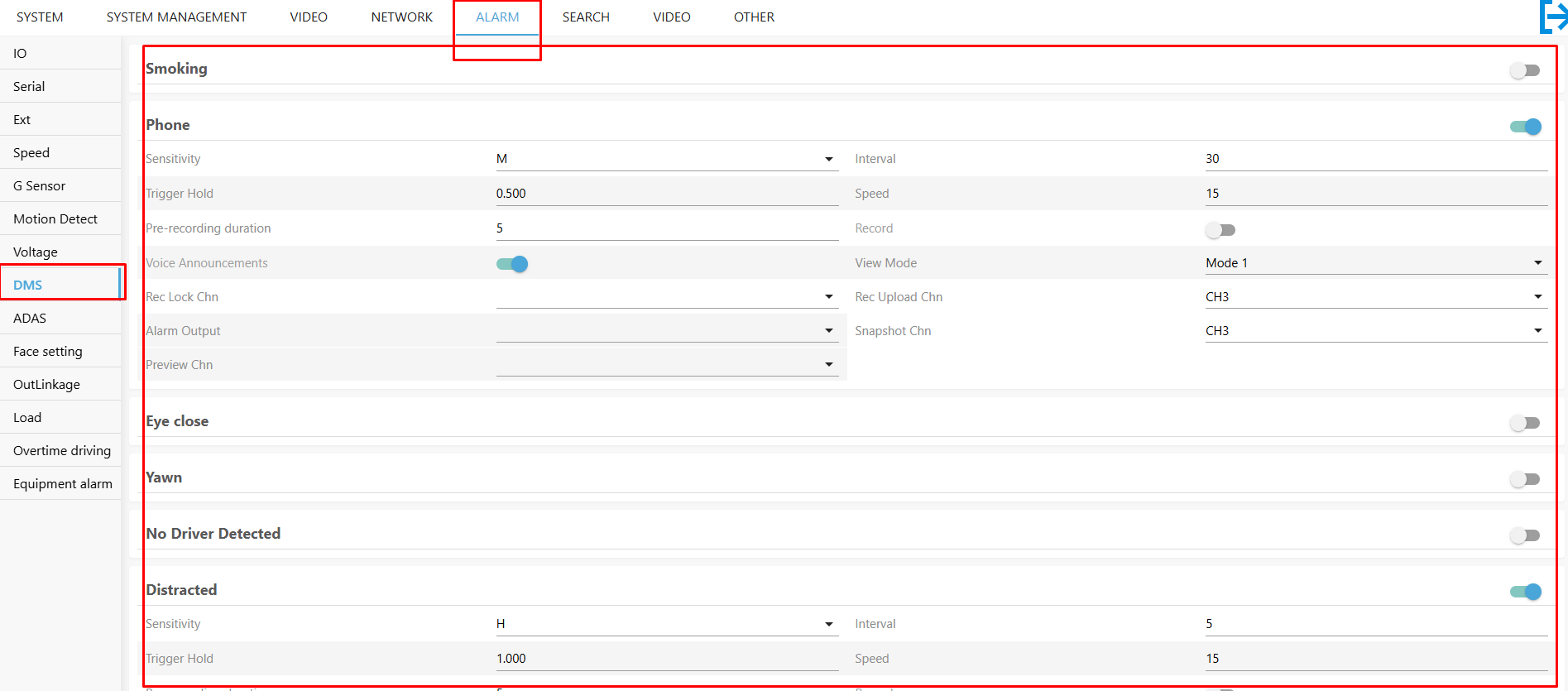

14. Update the alarm settings- Dsm settings to your preference

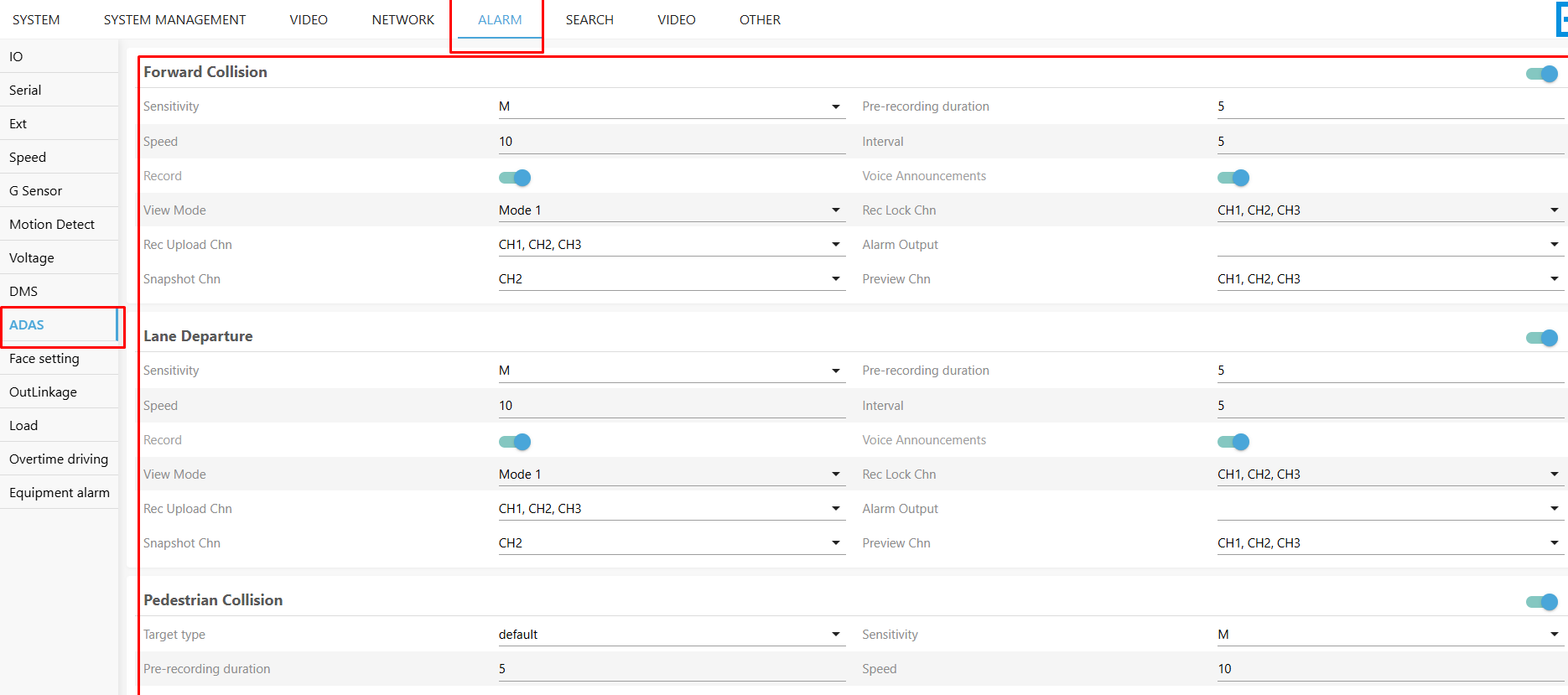

15. Update the alarm settings- ADASettings to your preference
