Howen Configuration Procedure Via Mobile app ( Howen iTool new firmware)
A. Quick setup.
The Howen iTool application is used to configure the device in this guide.
To point the device to your whitelabel platform, follow the steps below:
1. Download the Howen iTool here
2. Connect the dash camera to your mobile phone's Wi-Fi or device Hotspot.
The device is available for connection only 3 minutes after it is switched on.
3. Open the Howen iTool application and find the device.
Use the refresh button if necessary.
4. Select and log in to the device. The default password is 111111.
B. Configure System Settings.
To configure the device, click on config.
Set user details if interested in device security
To set your time zone, go to the clock and set it. Remember, when adding the device on the platform-side, you will be required to apply an offset
For DST refer to Daylight saving setup-howen devices
To set power-related settings.
To set sleep-related settings
To set disk settings
Set your preferred audio settings
Here you can manage your parameters /configuration items
C. Configure Video Settings.
To set the very key general settings.
Configure the Mstream video settings
Set the stream video settings
Under the storage device, the file storage-related settings
If you have an On-Screen Display (OSD) set the parameters
video blocking and privacy settings as per your preference
D. Configure Network Settings

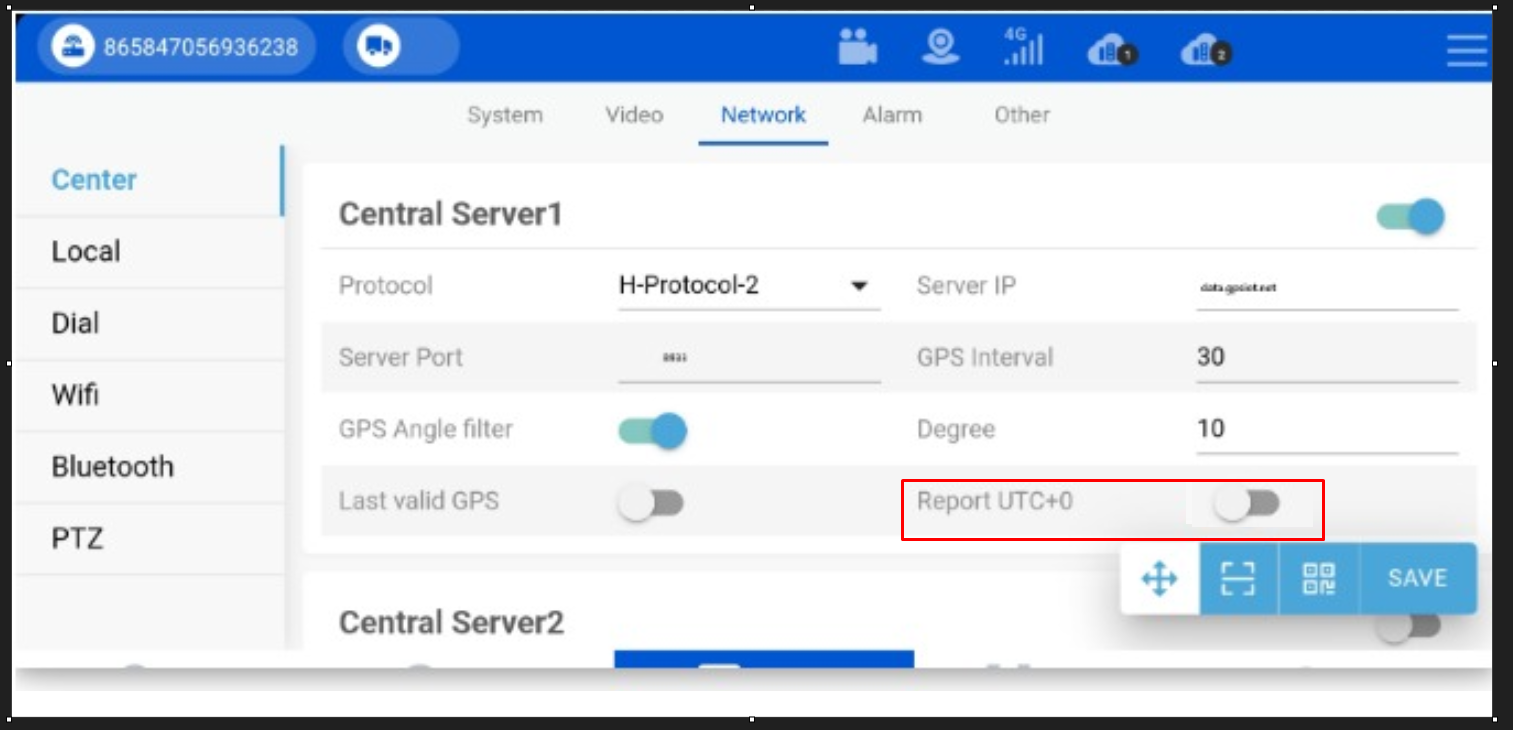

i. Pointing gps and video data to the server to receive GPS location data.
Update the server settings on centre-1, make sure you select H-protocol
server is: data.gpsiot.net port 8933
for ftp server details,
server: media.gpsiot.net
user and password: Fill in this Form.
ii. Set the ftp server details (server to receive video files)
iii. Set apn settings
iv. Set the Wi-Fi settings. This will enable device report using wiffi connectivity when in range
E. Configure Alarm Settings.
Configuration of Alarms/event select Alarm
To set speed-related events, go to alarm >>speed
To set harsh related events, go to alarm>> G sensor
impact./crash incident
harsh cornering/tilt incident
Harsh acceleration incident
Harsh braking
motion detection /motion events
set voltage-related events
F. General overview
. Click on SYSTEM>>Status to get a general overview
