A. Quick setup.

 The Howen iTool application is used to configure the device in this guide.

To point the device to your whitelabel platform, follow the steps below:

1. Download the Howen iTool here


2. Connect the dash camera to your mobile phone's Wi-Fi or device Hotspot.

     The device is available for connection only 3 minutes after it is switched on.

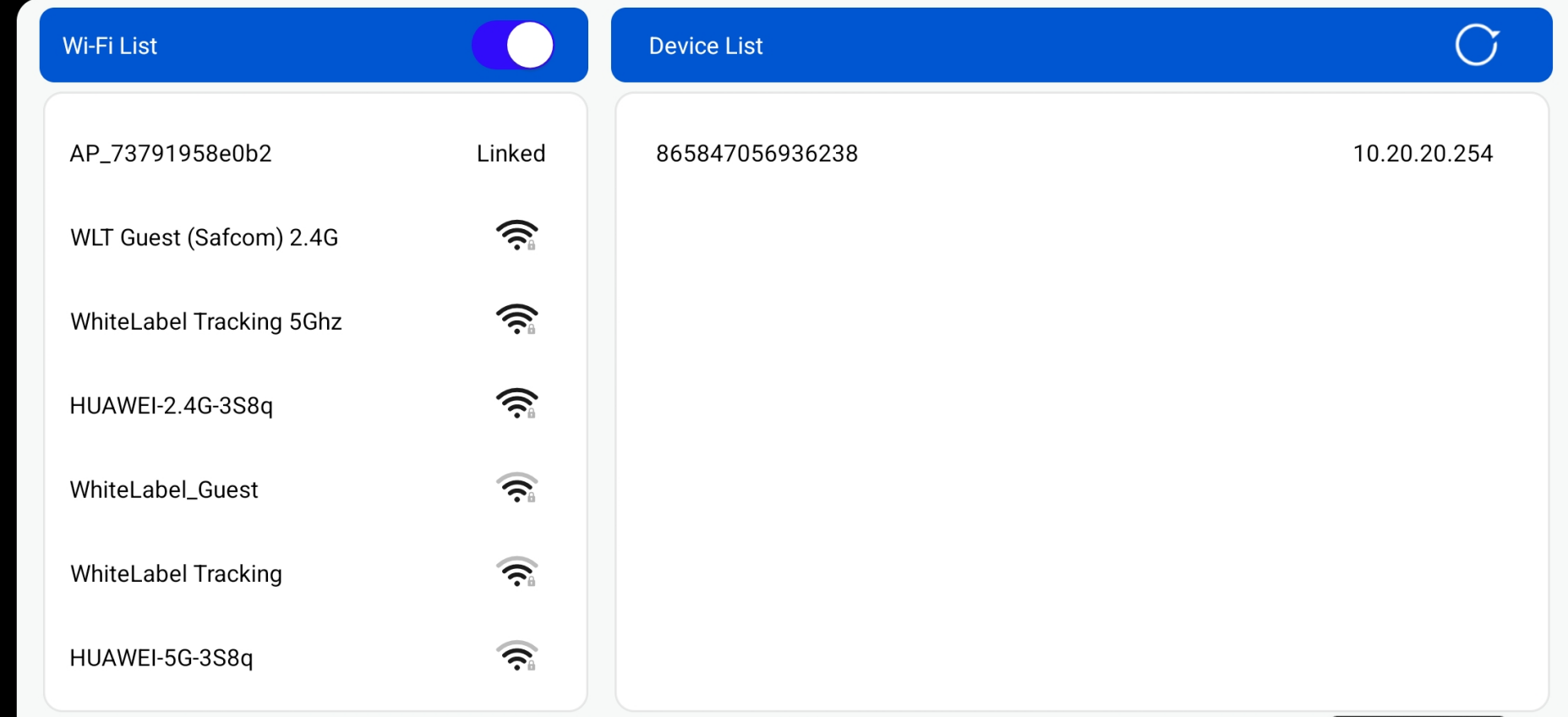

3. Open the Howen iTool application and find the device.

Use the refresh button if necessary.

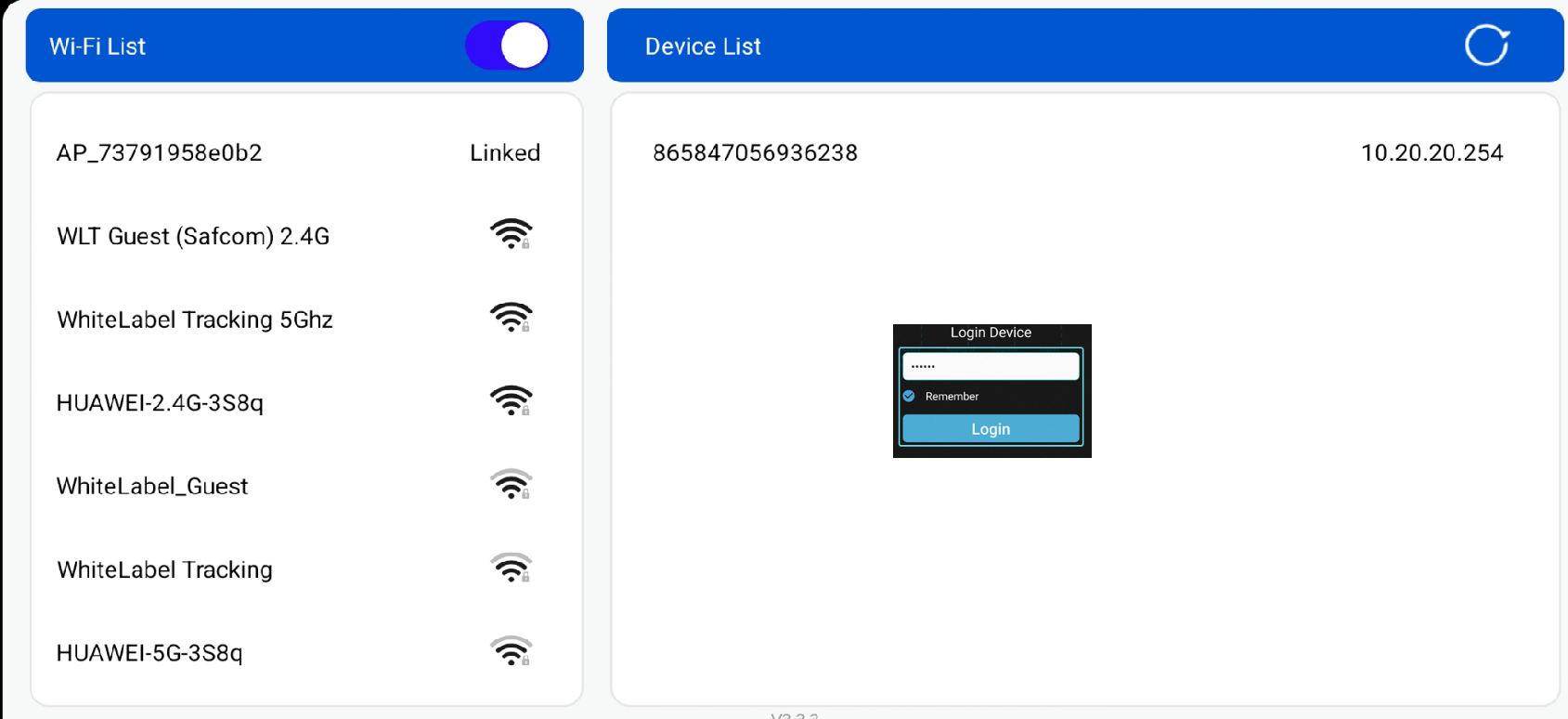

4. Select and log in to the device. The default password is 111111.








B. Configure System Settings.

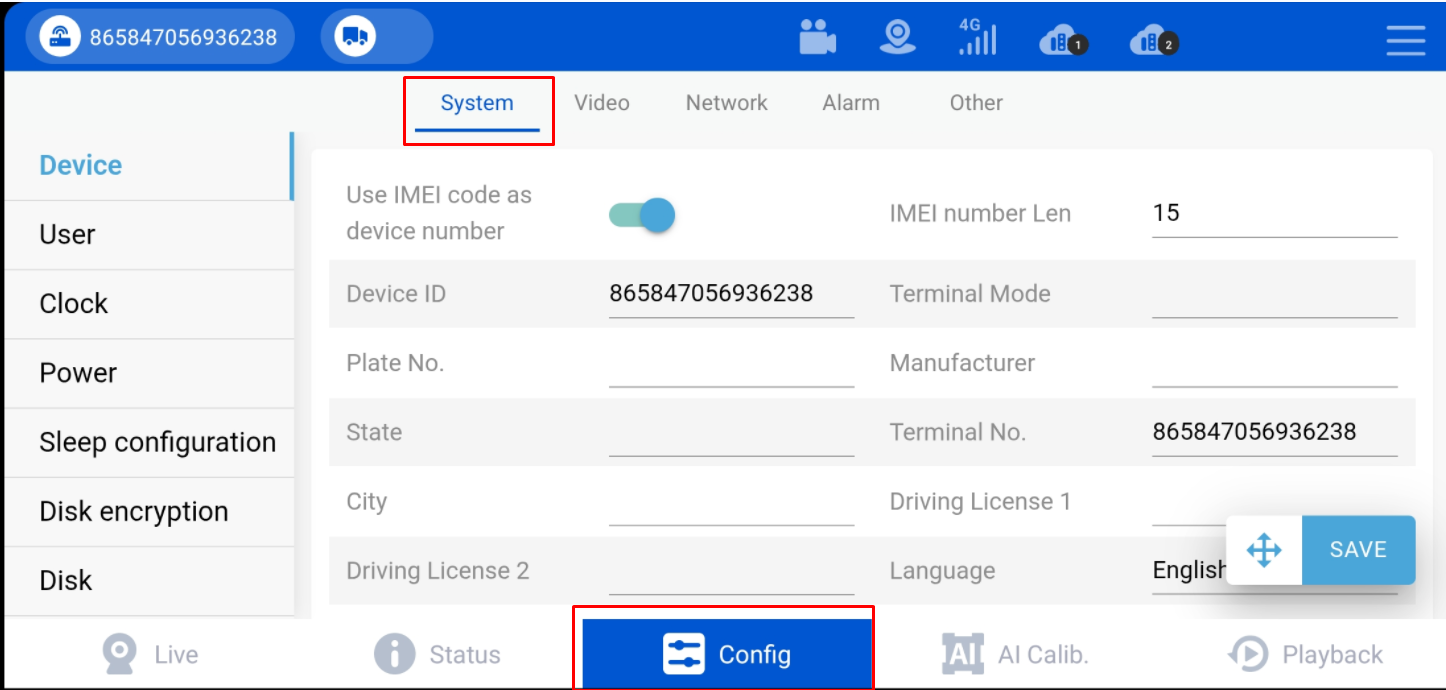

To configure the device, click on config.

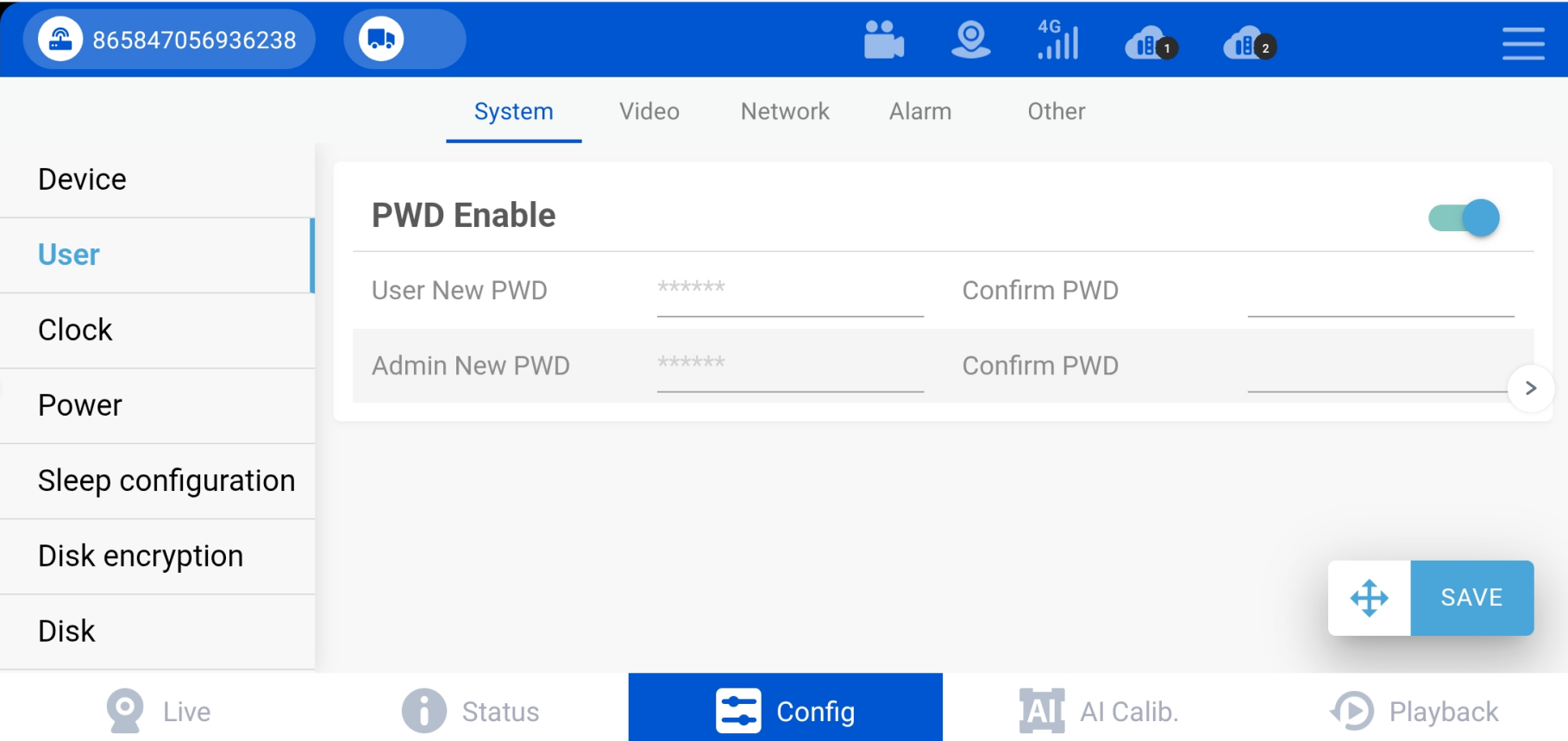

Set user details if interested in device security




To set your time zone, go to the clock and then set your time zone.  Remember, when adding the device on the platform, you will be required to apply an offset

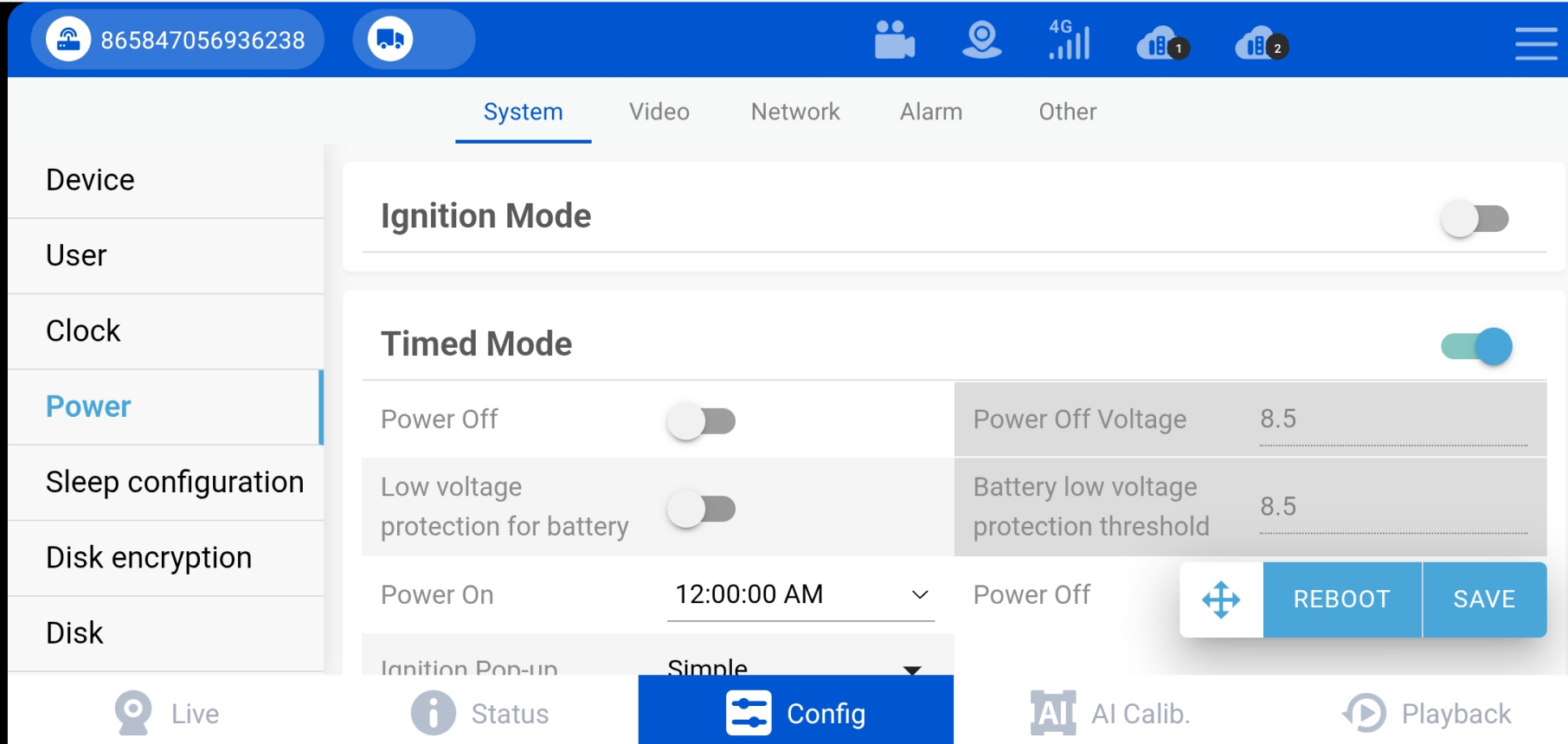

To set power-related settings.

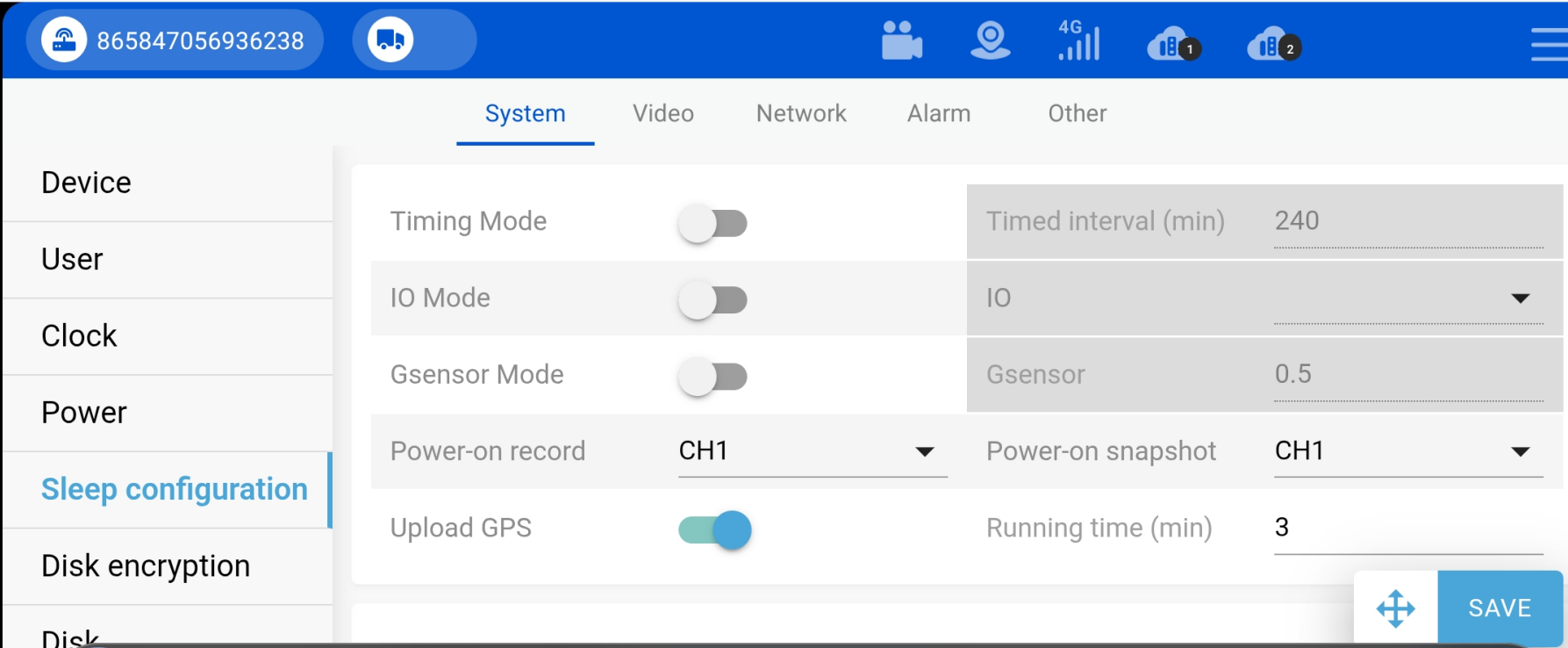

To set  sleep-related settings

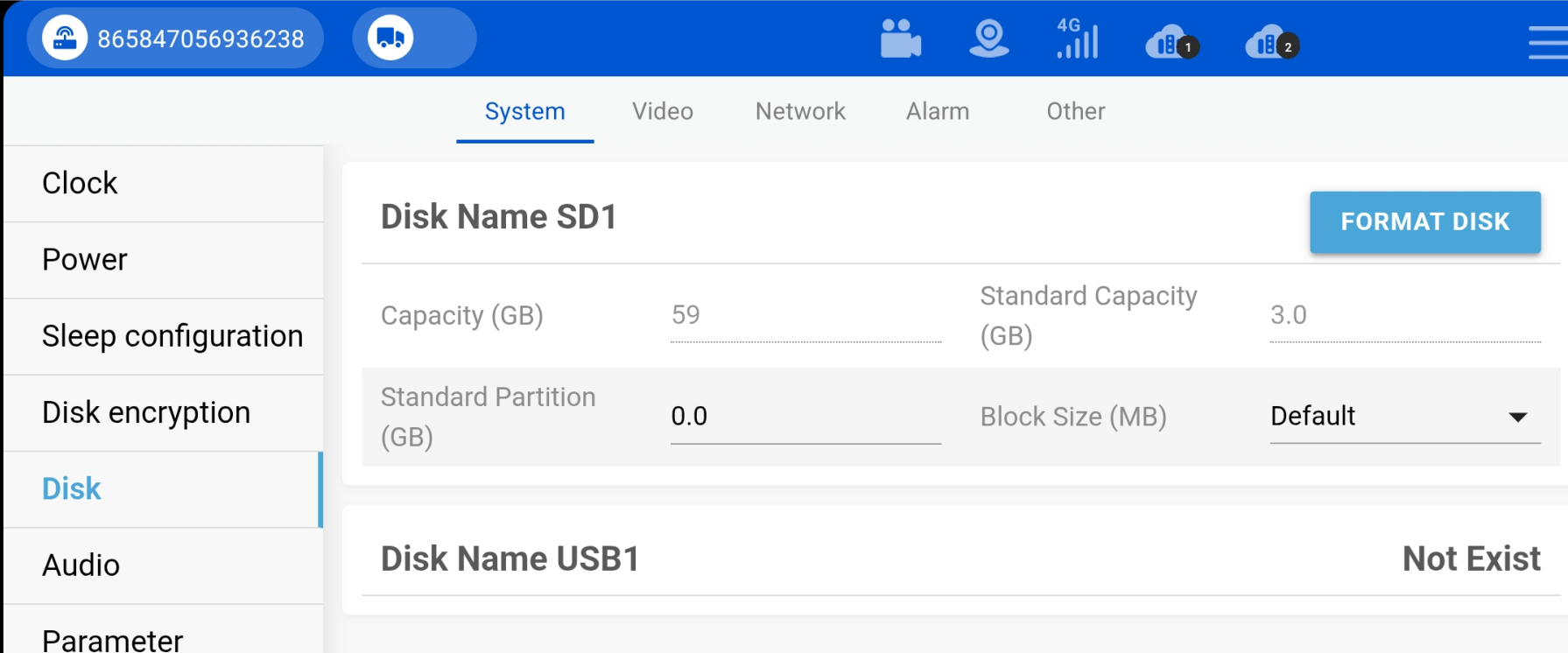

To set disk settings

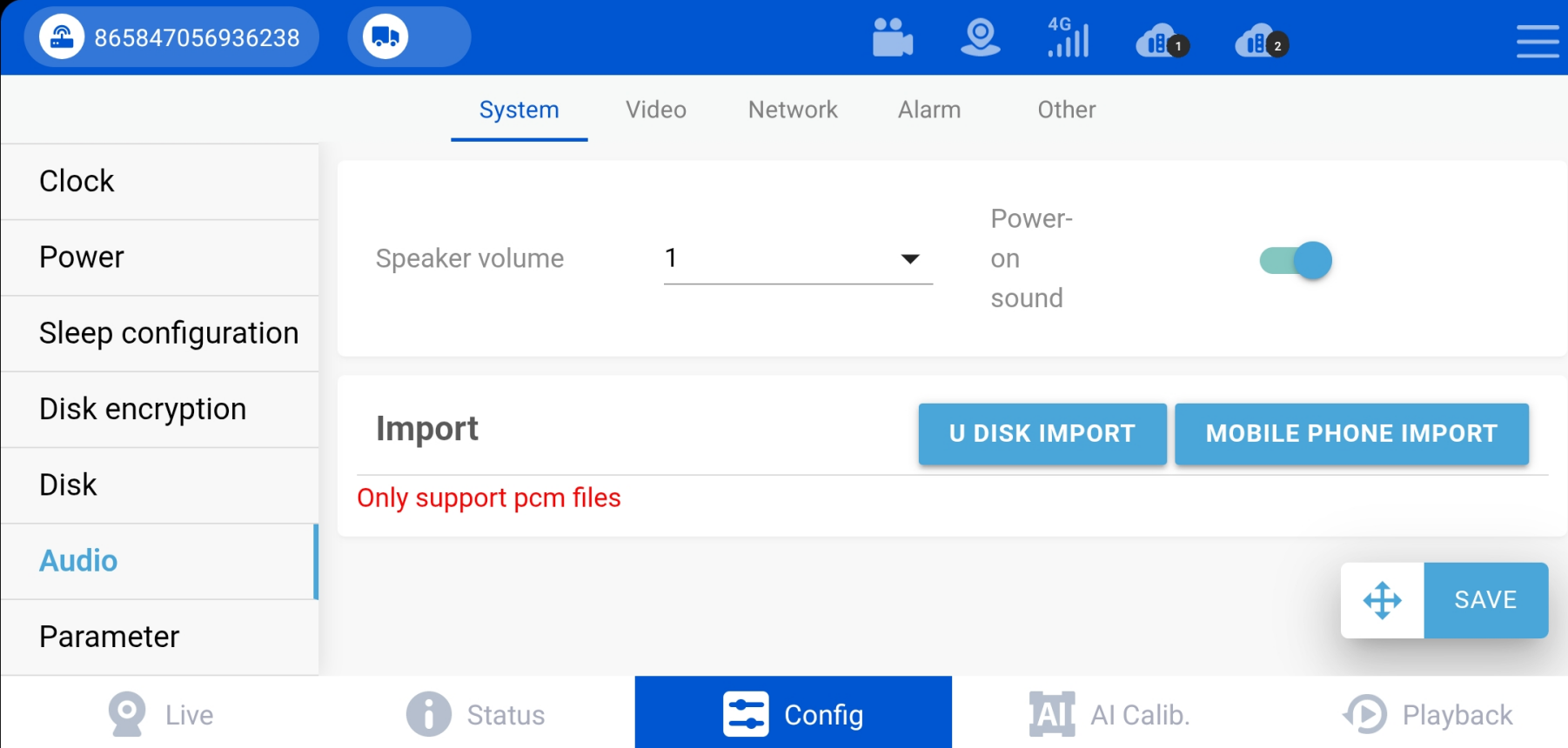

Set your preferred audio settings



Here you can manage your parameters /configuration items





C. Configure Video Settings.

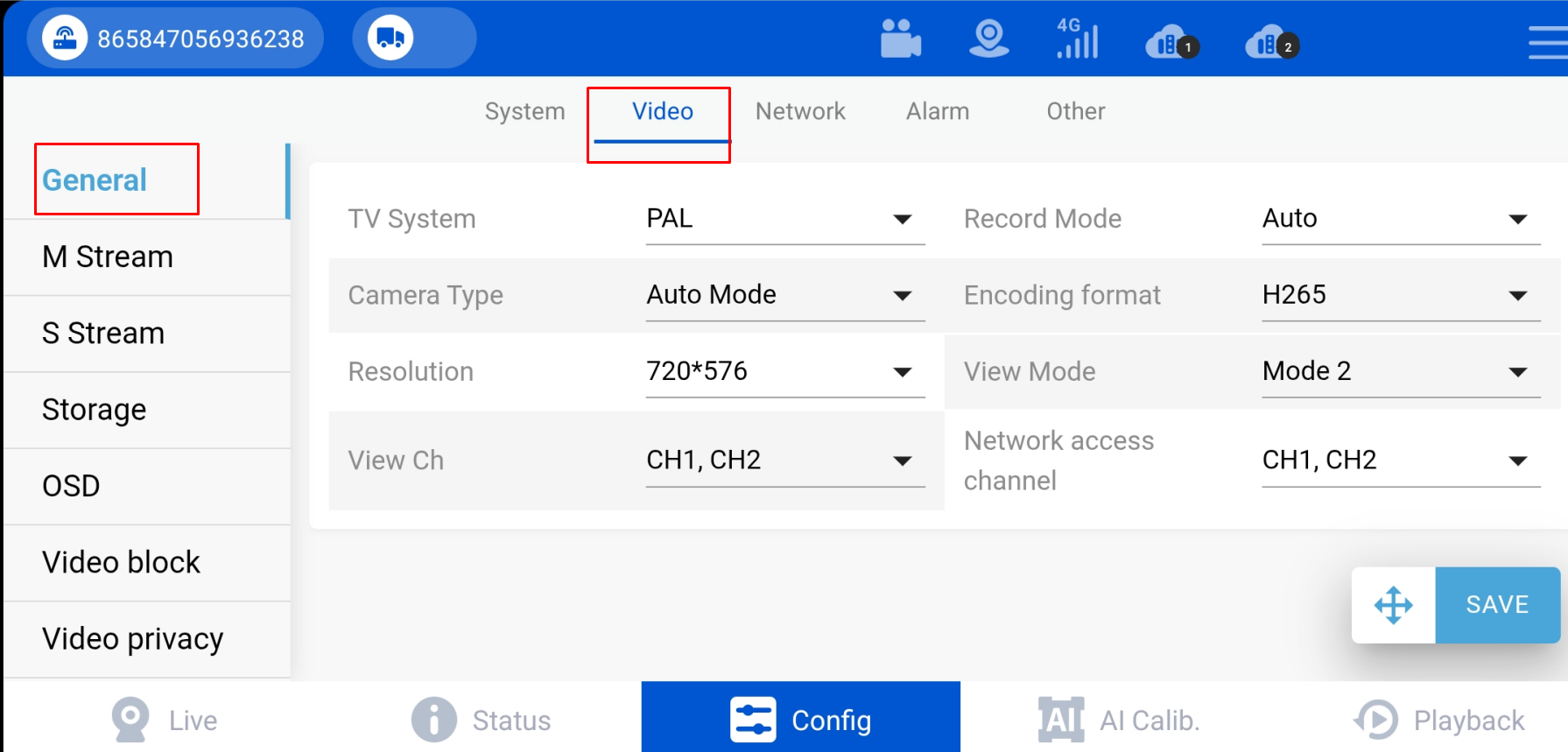

To set the very key general settings.





Configure the Mstream  video settings

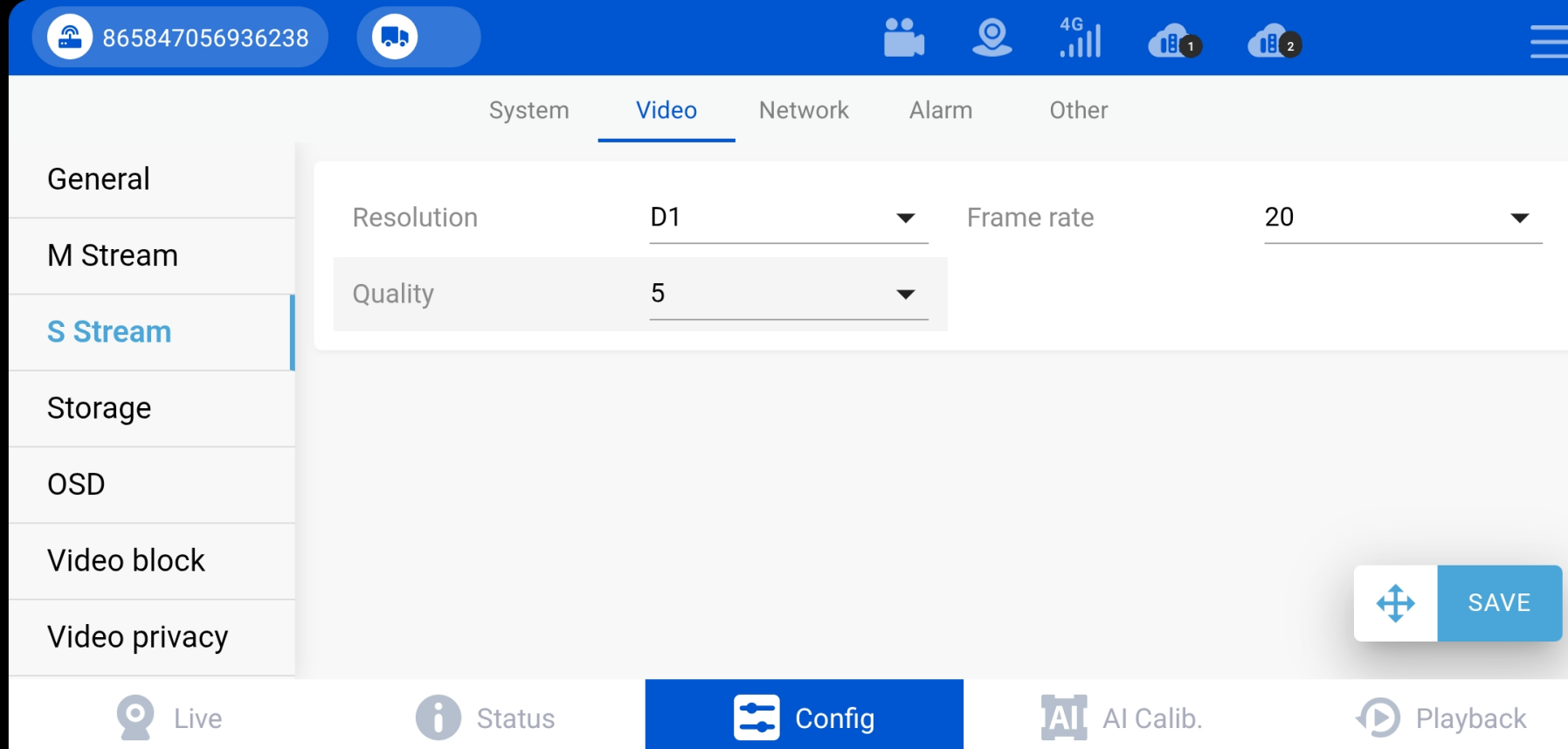

Set  the stream video settings



Under the storage device, the file storage-related settings

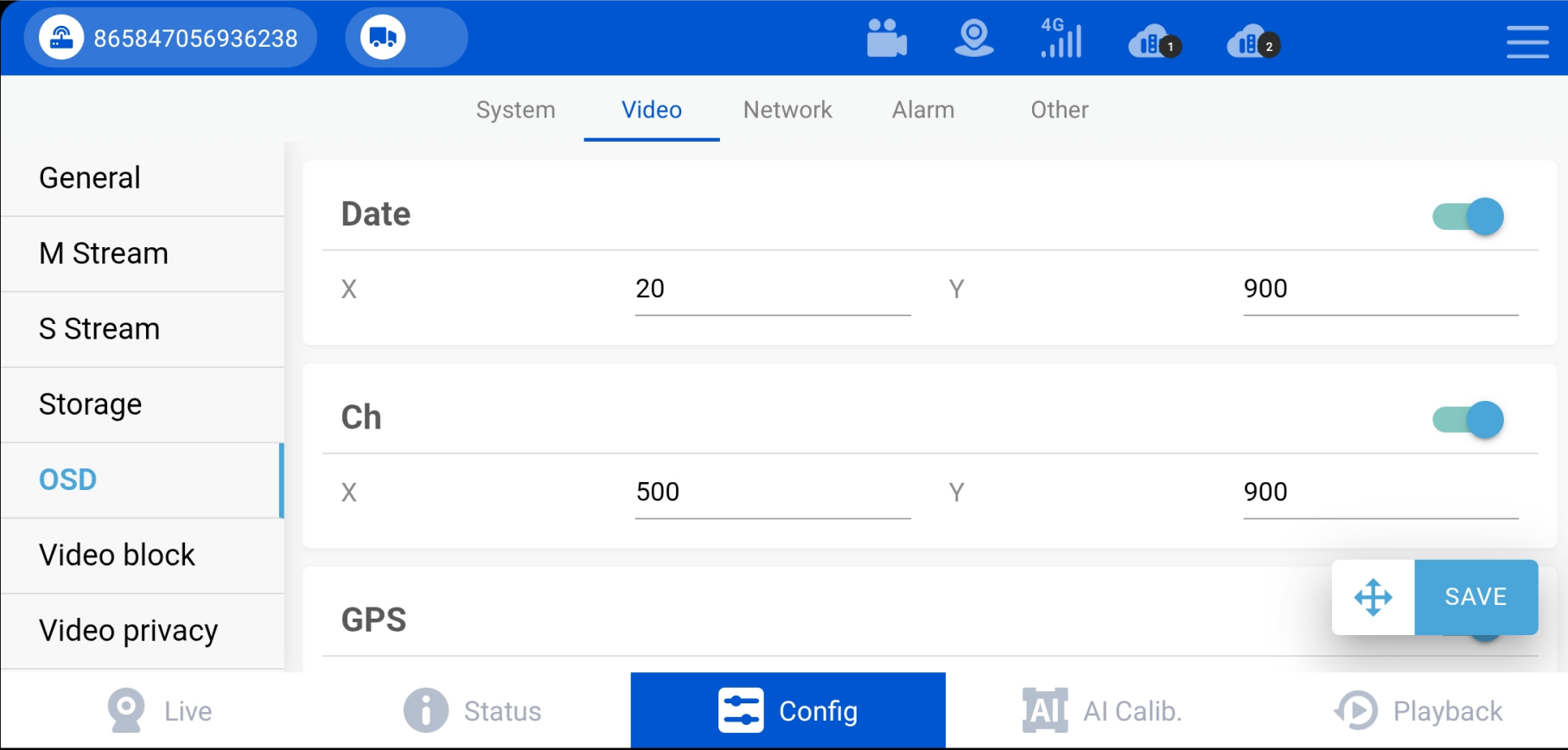

If you have an On-Screen Display (OSD) set the parameters

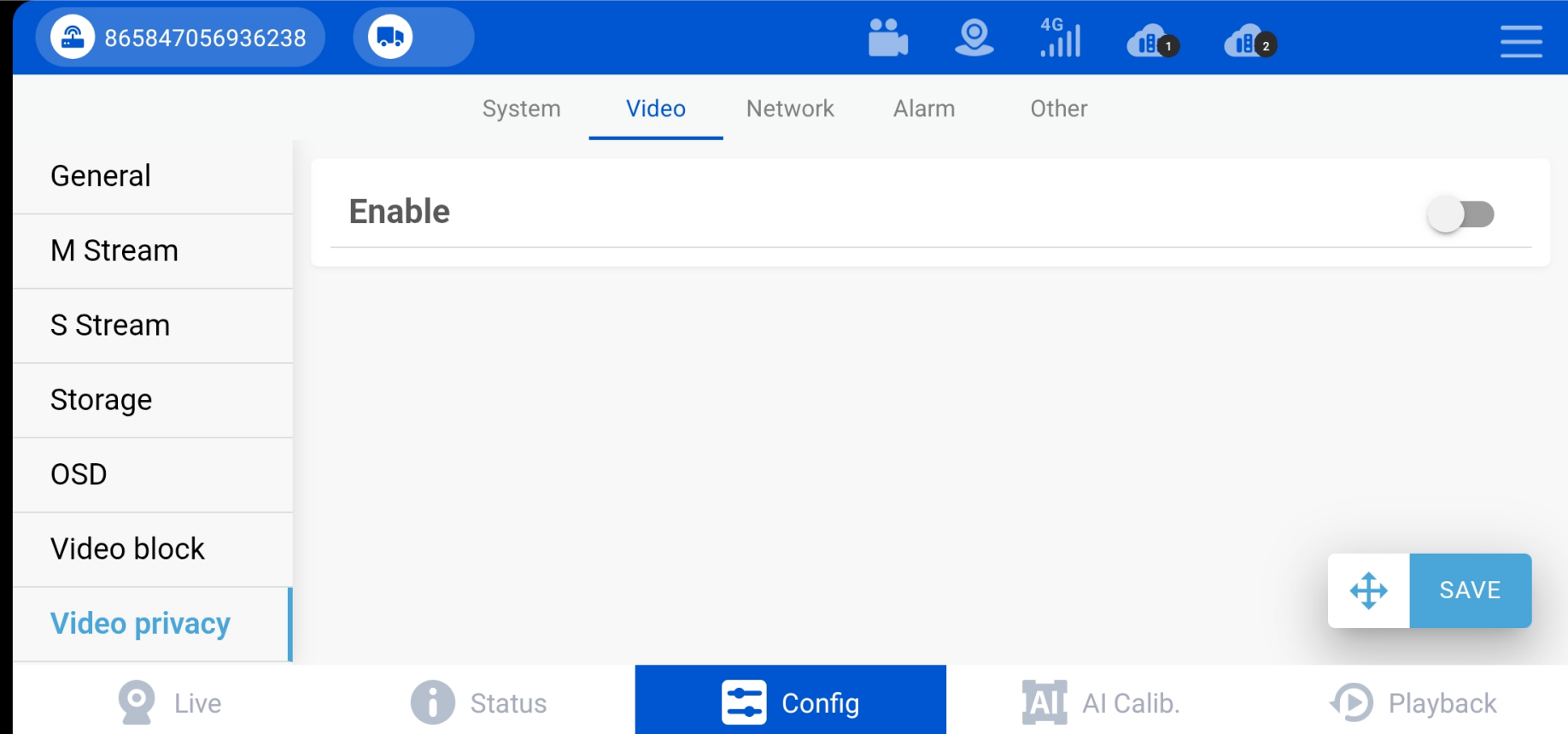

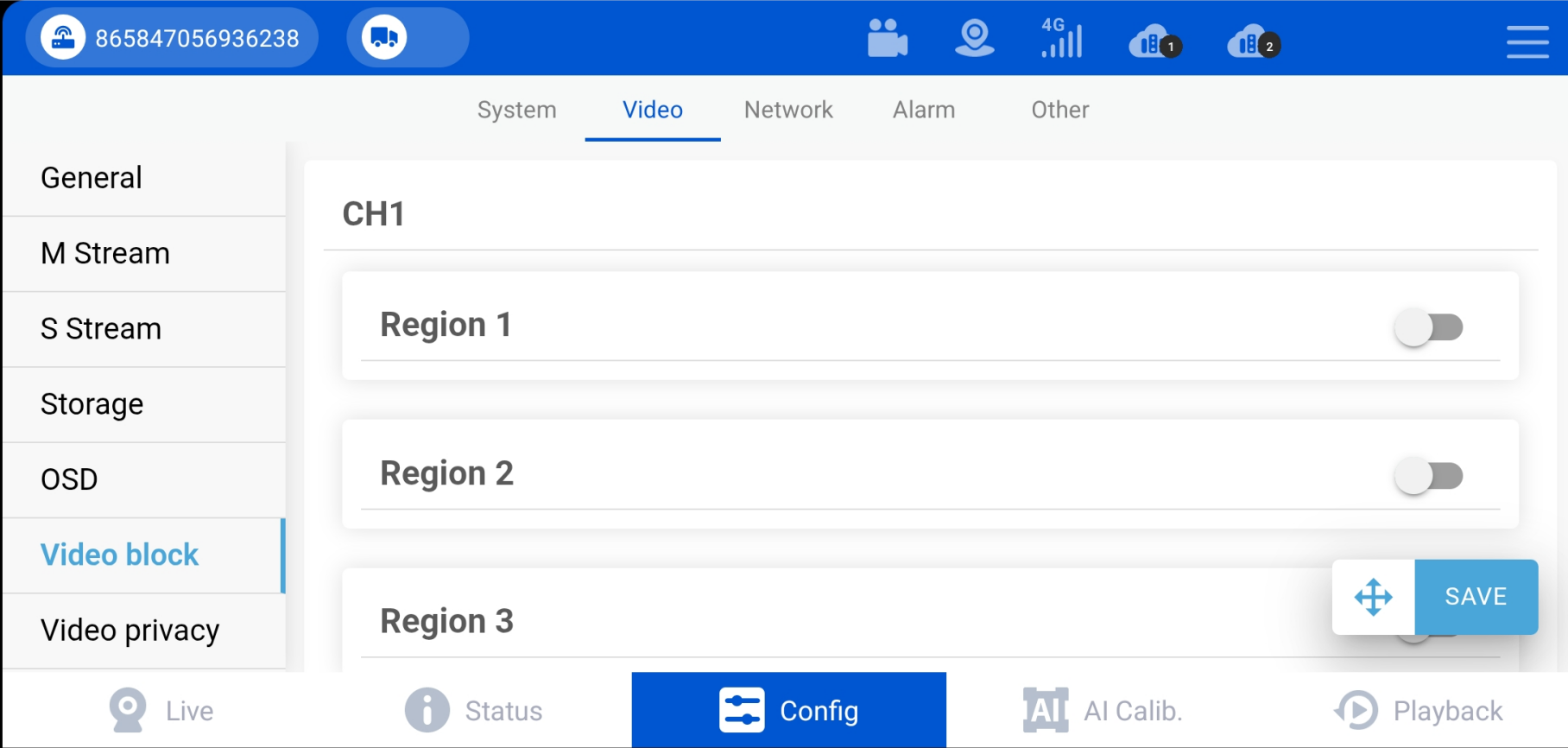

video blocking and privacy settings as per your preference




D. Configure Network Settings

i. Pointing gps and video data to the server to receive GPS location data.

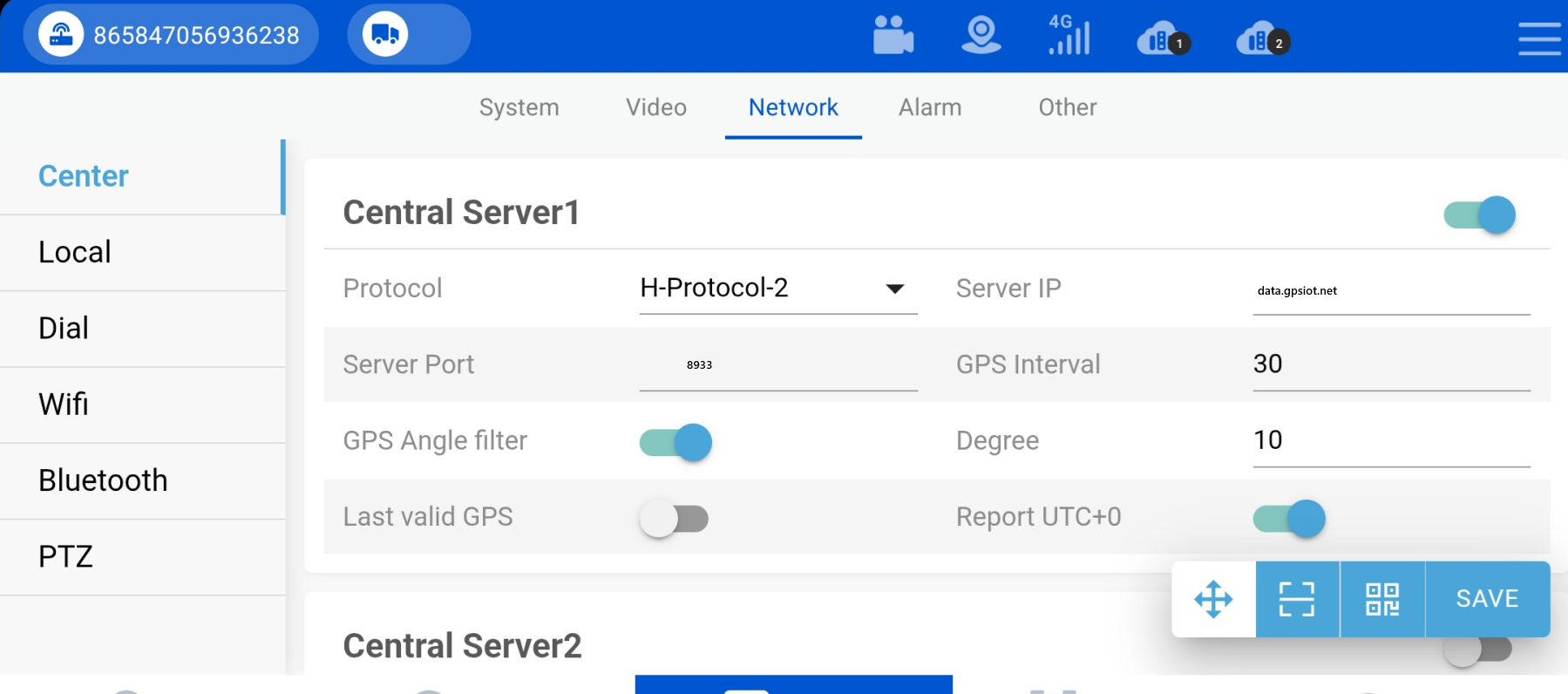

Update the server settings   on centre-1, make sure you select H-protocol

server is: data.gpsiot.net port 8933

for ftp server details,

server: media.gpsiot.net

user and password: Reach out to support

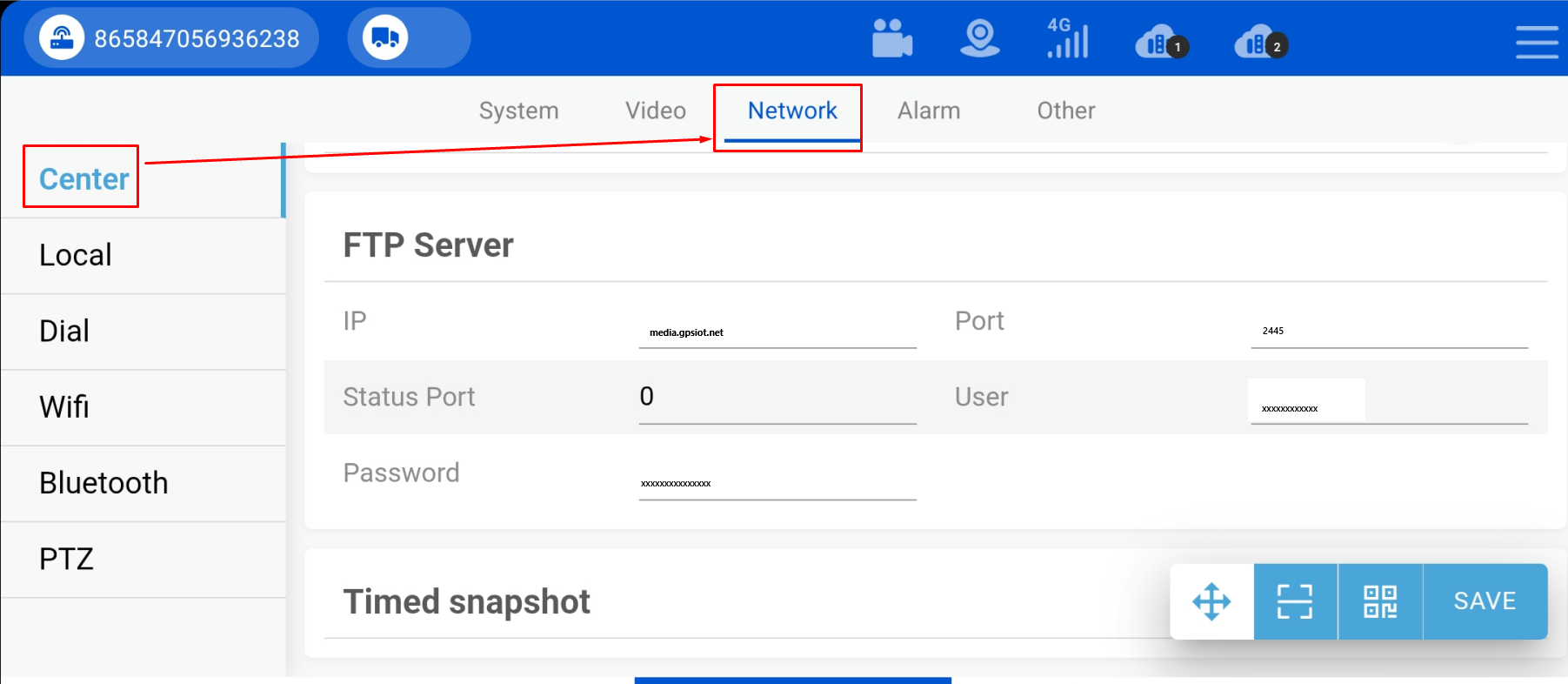

ii. Set the ftp server details (server to receive  video files)

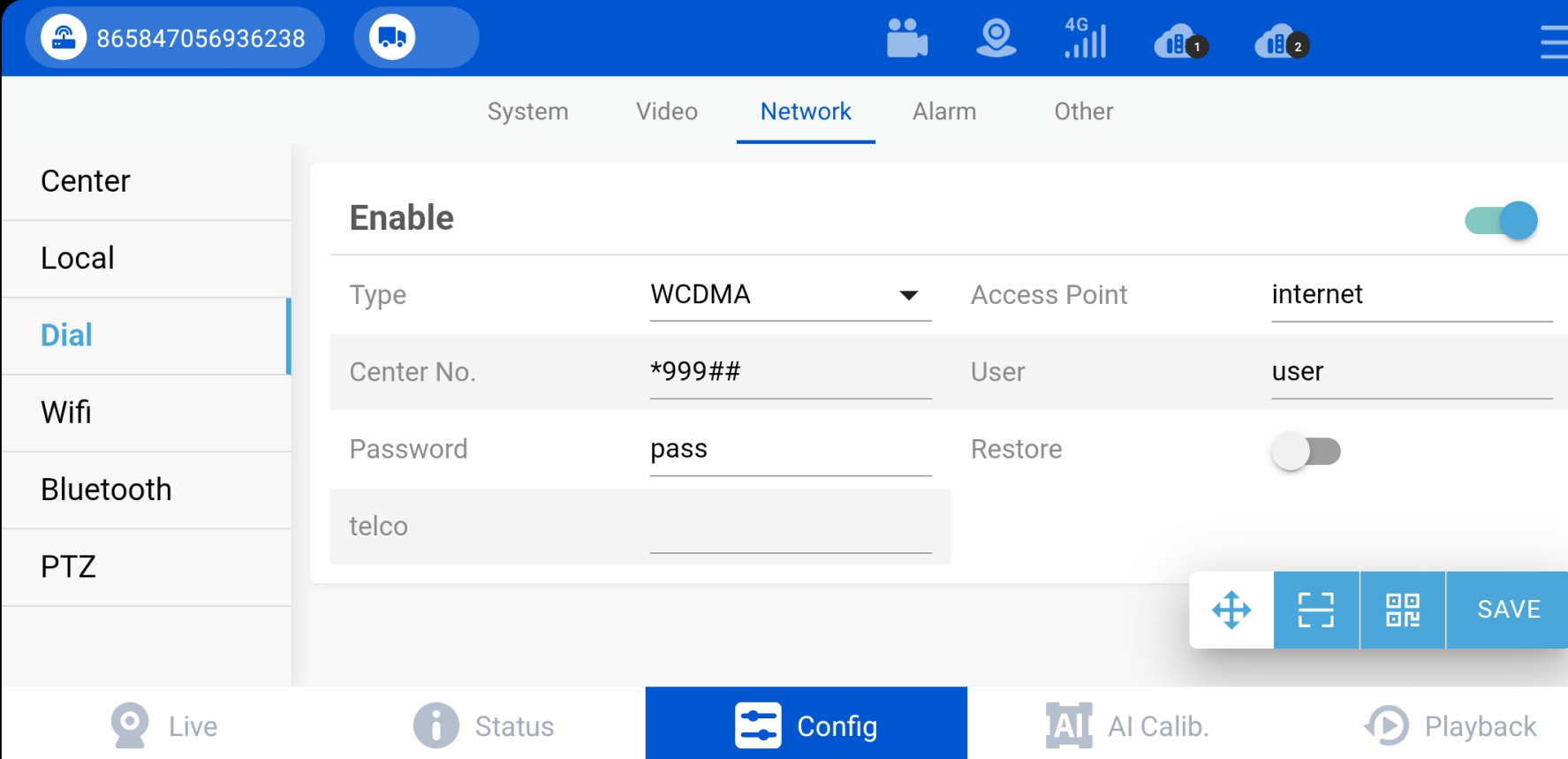

iii. Set apn settings

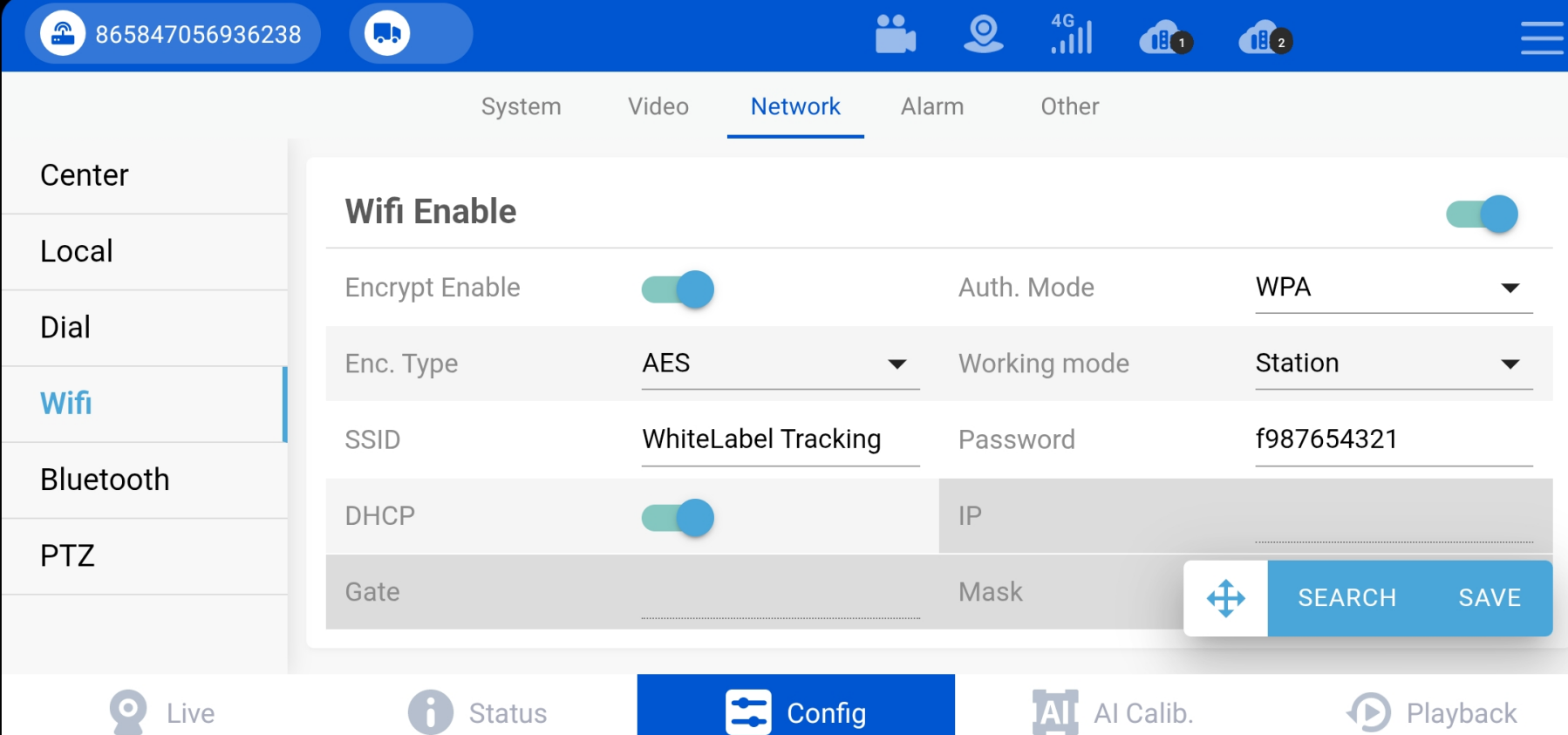

iv. Set the Wi-Fi settings. This will enable device report using wiffi connectivity when in range





E. Configure Alarm Settings.

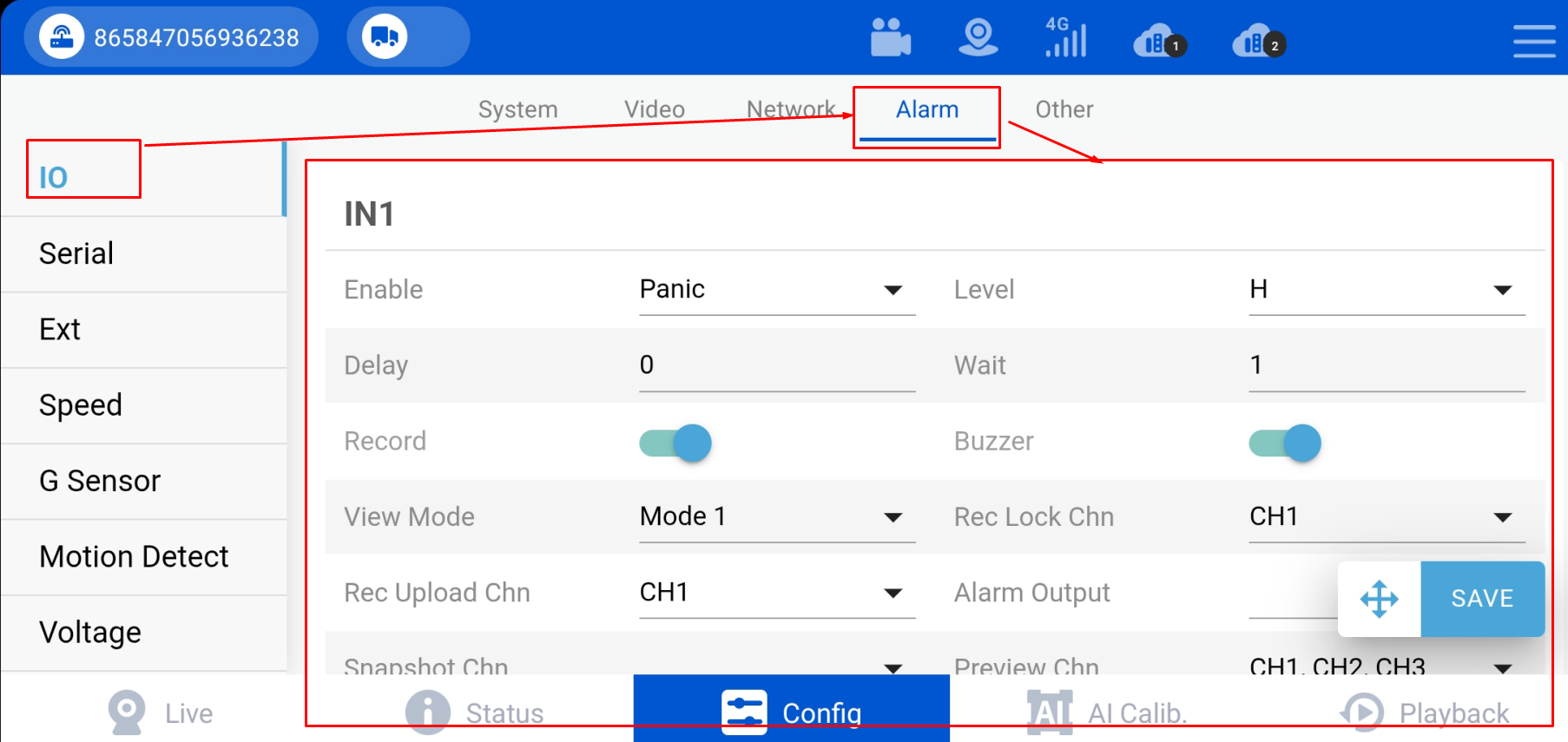

Configuration of Alarms/event select Alarm

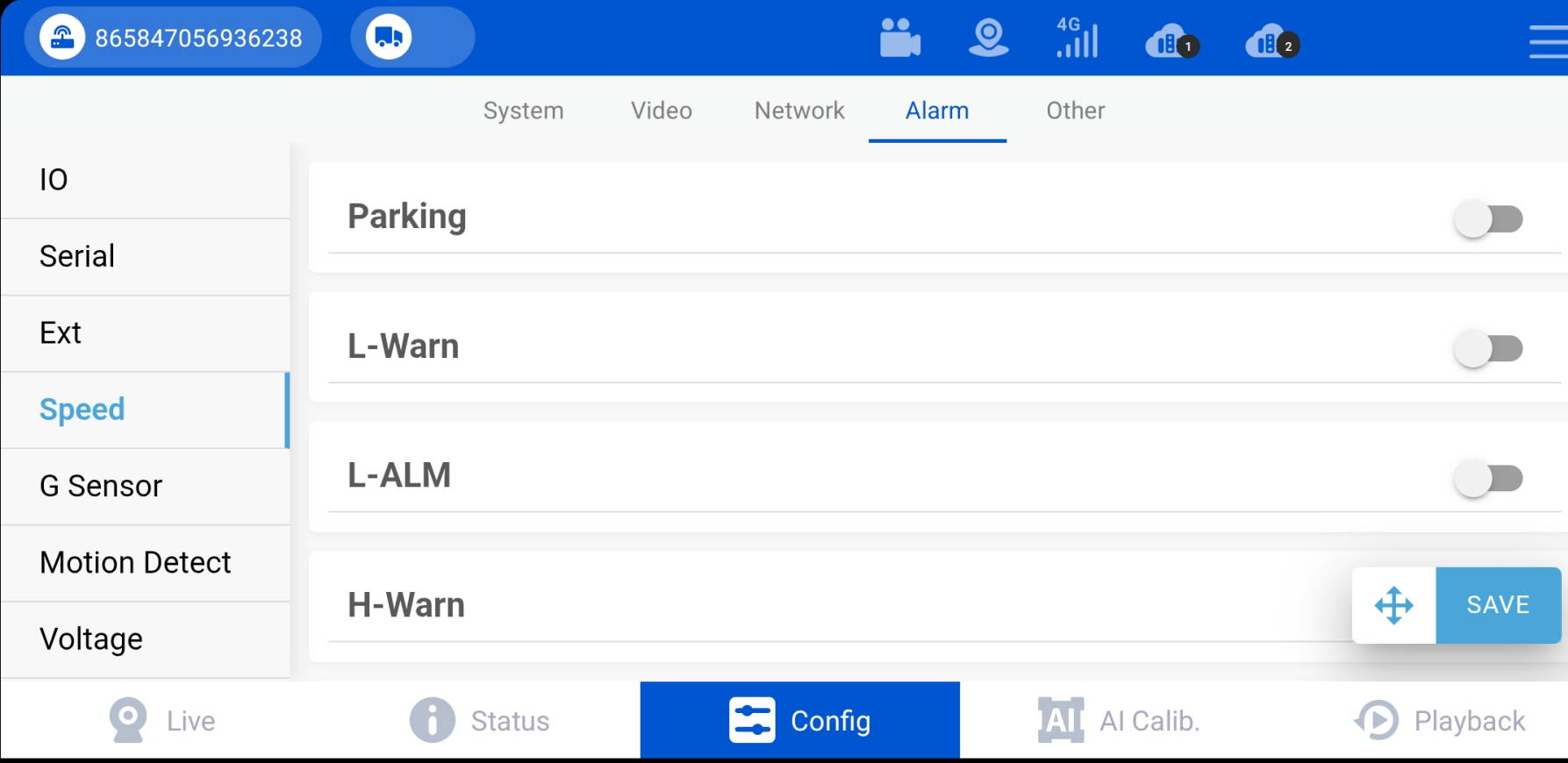

To set speed-related events, go to alarm >>speed



To set harsh related  events, go to alarm>> G sensor

impact./crash incident


harsh cornering/tilt incident



Harsh acceleration incident





Harsh braking

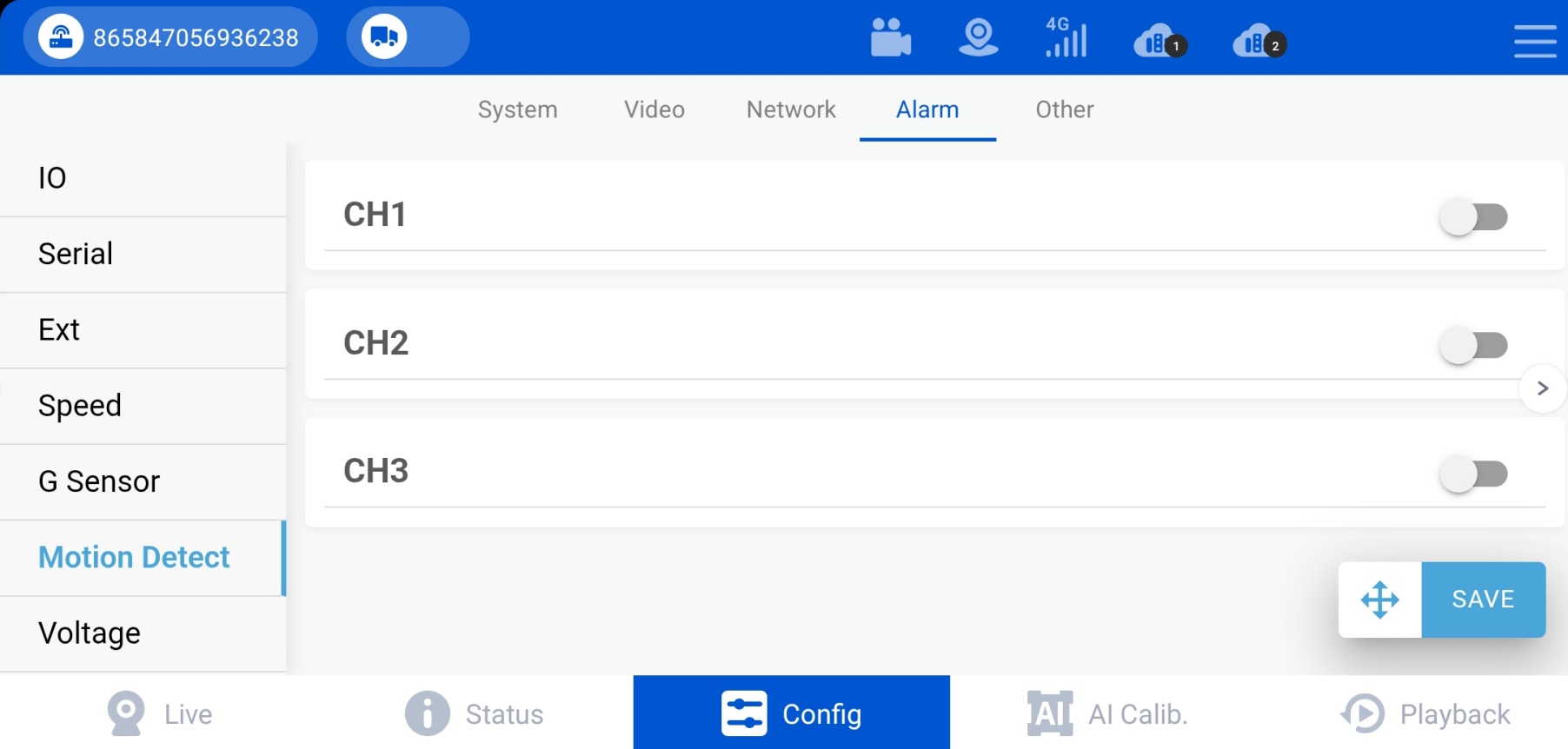

motion detection /motion events

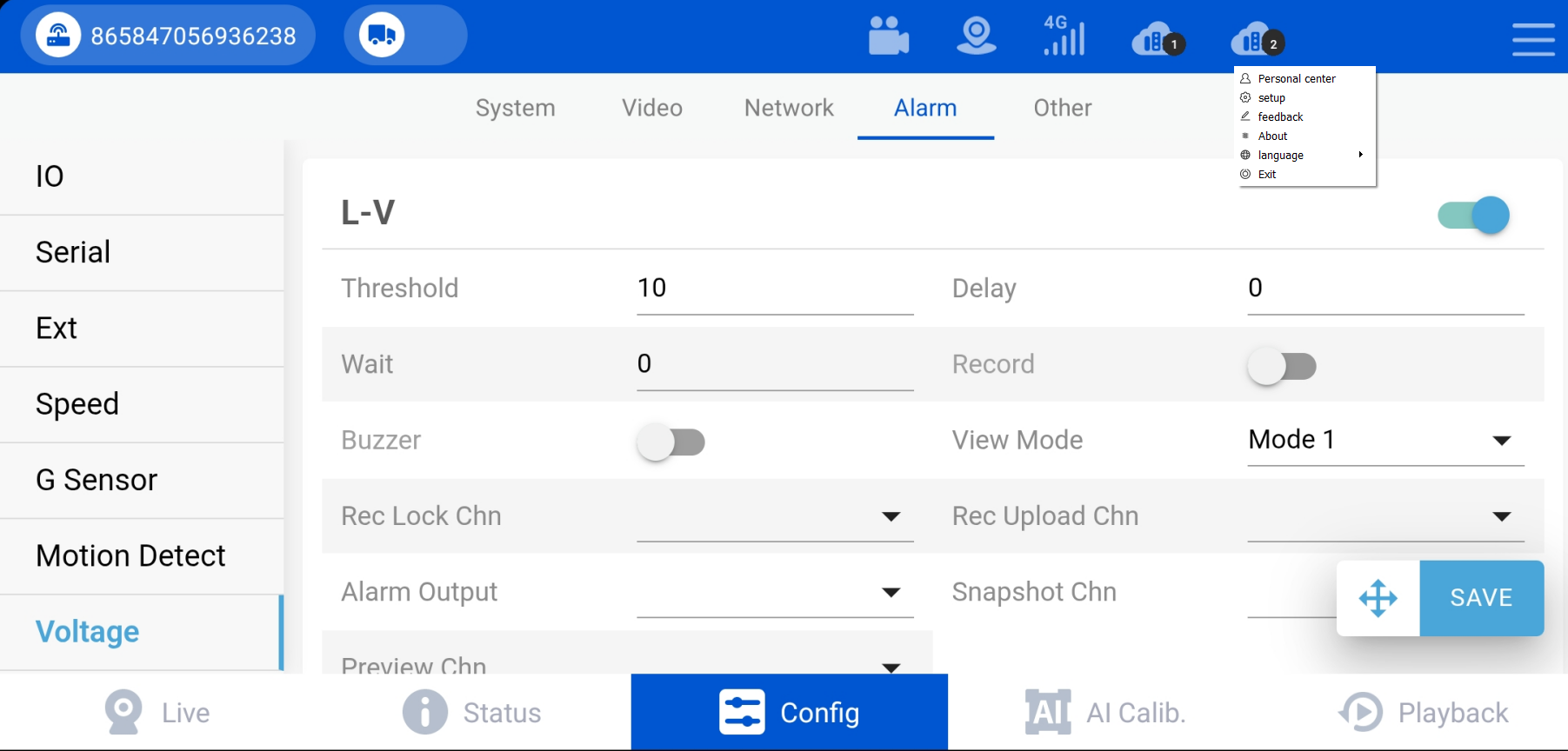

set voltage-related events



F. General overview

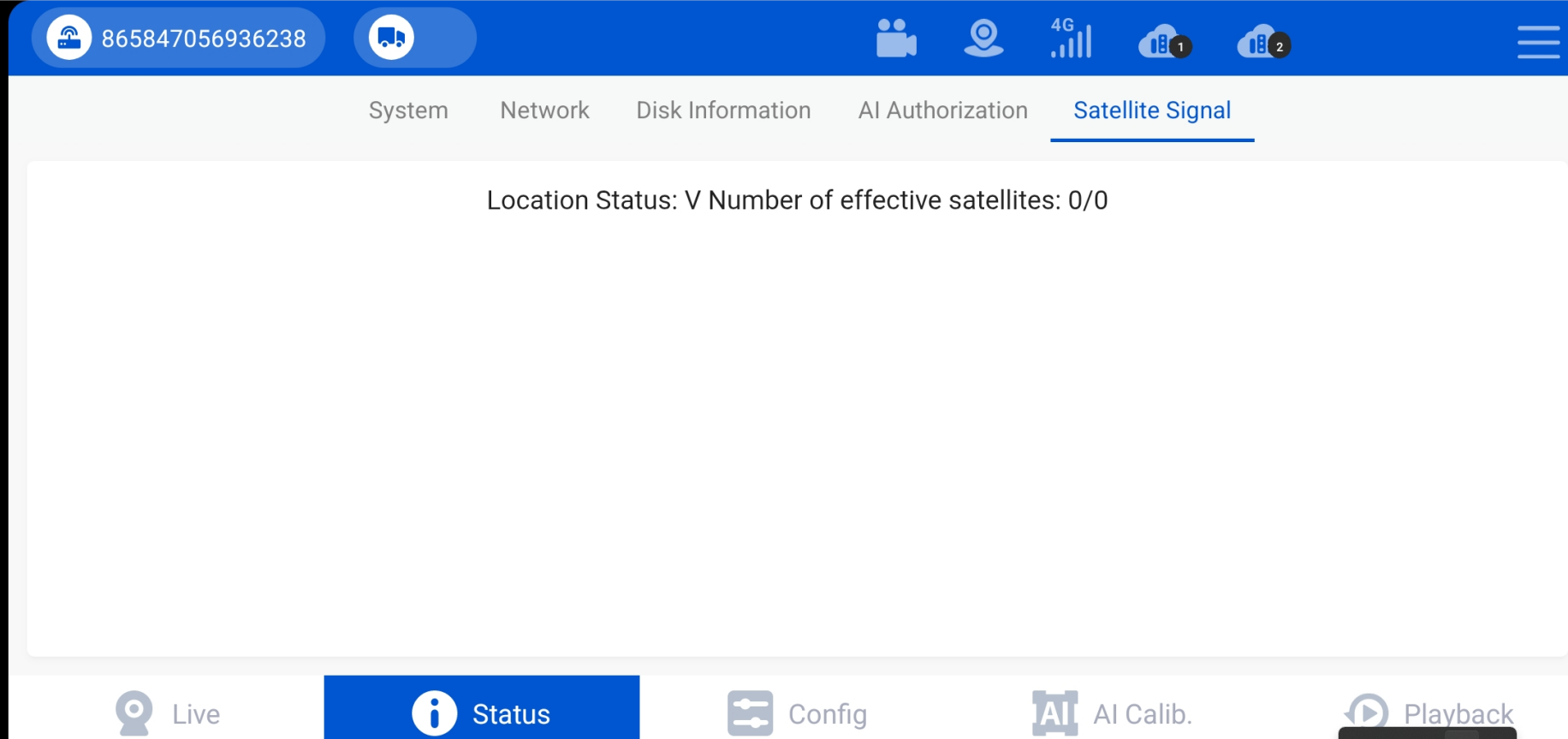

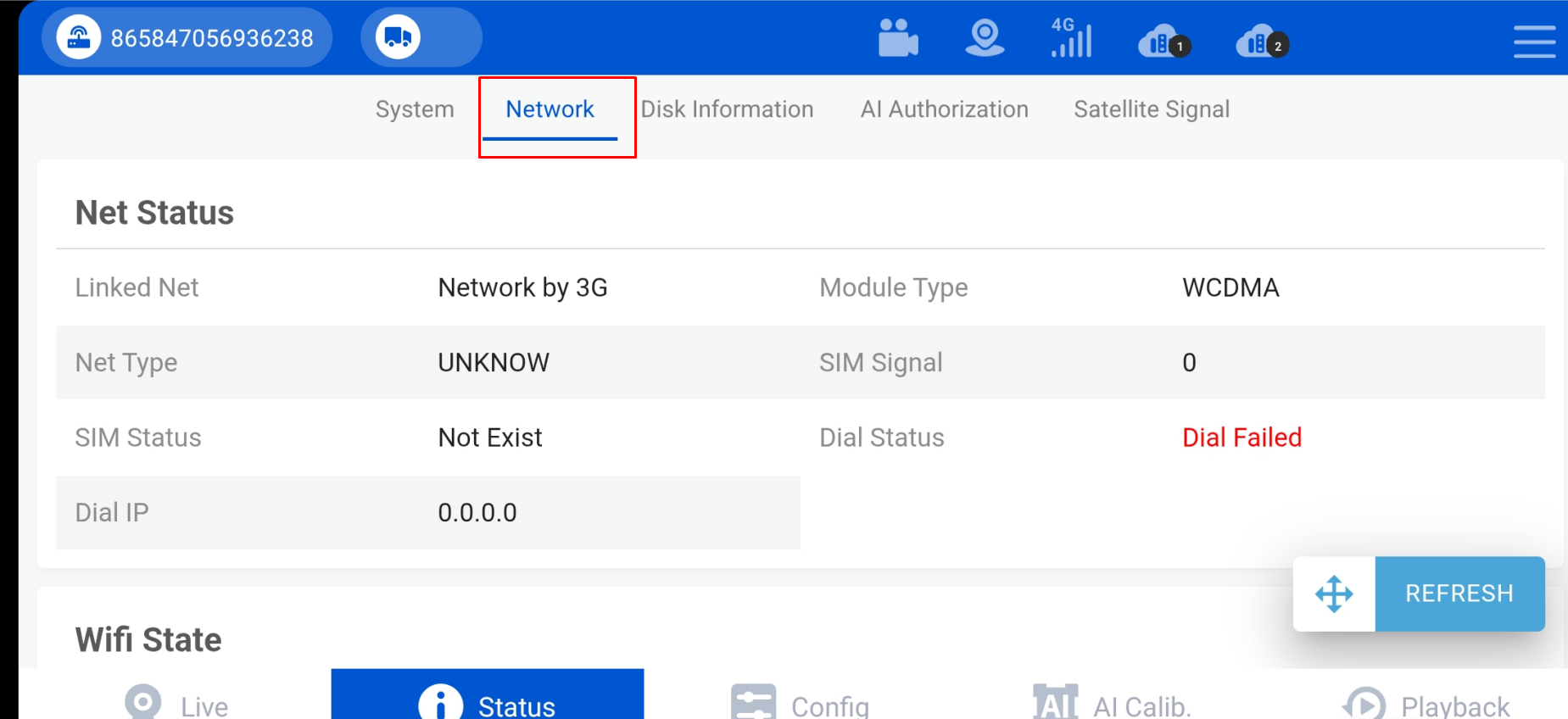

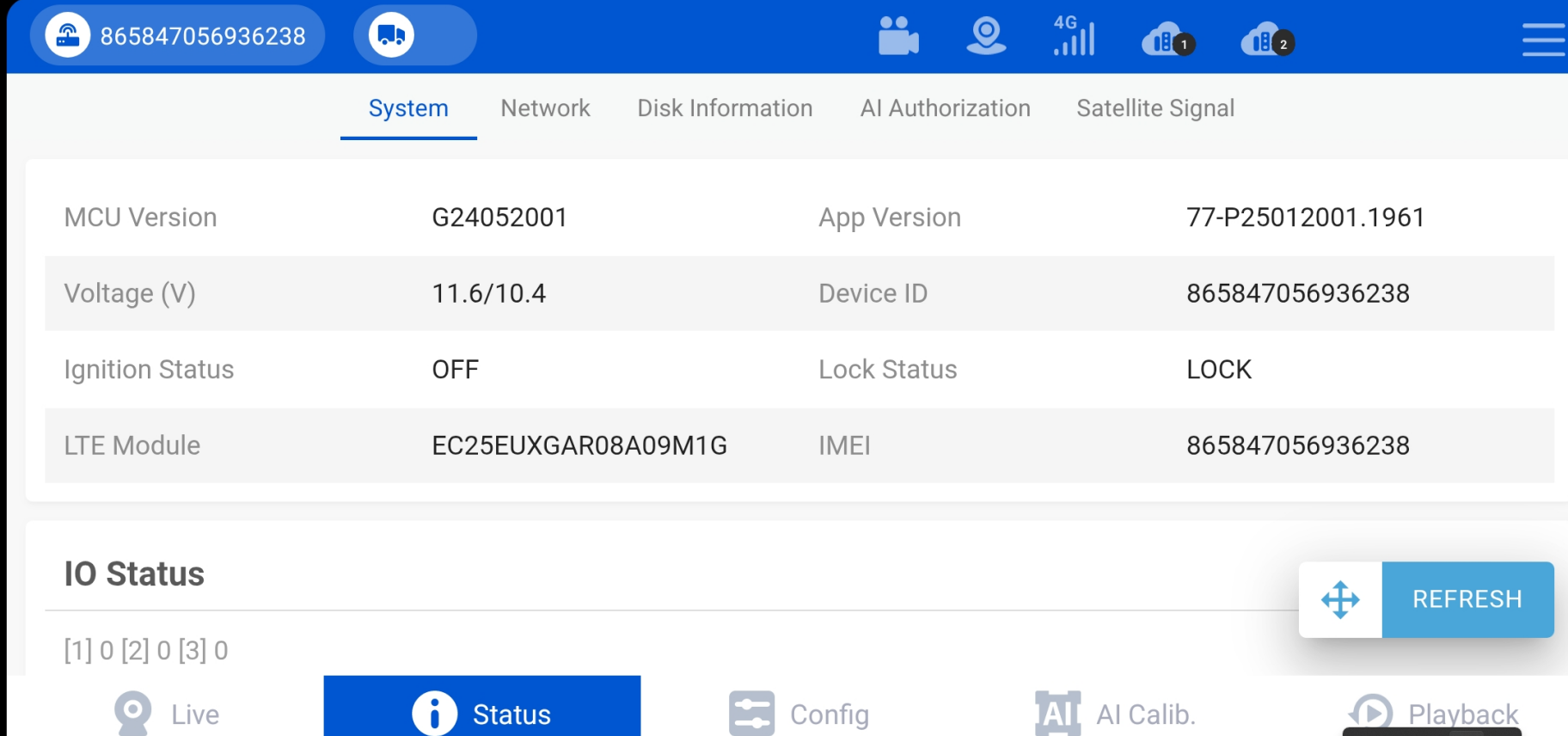

. Click on SYSTEM>>Status  to get a general overview

































If you need to change the ID, select the Terminal item of the System section in the settings. Change the ID in the Dev ID field and click Save.


6. In the settings, select the Center item of the Network section.

7. Update the server settings   on center-1   make sure you select H-protocol

server is: data.gpsiot.net port 8933
for ftp server details, contact
server is : media.gpsiot.ner

user and password: Reach out to support

Specify the server IP and port c. Click Save.


8. Update Apn settings
In the settings, select the Dial item of the Network section.
